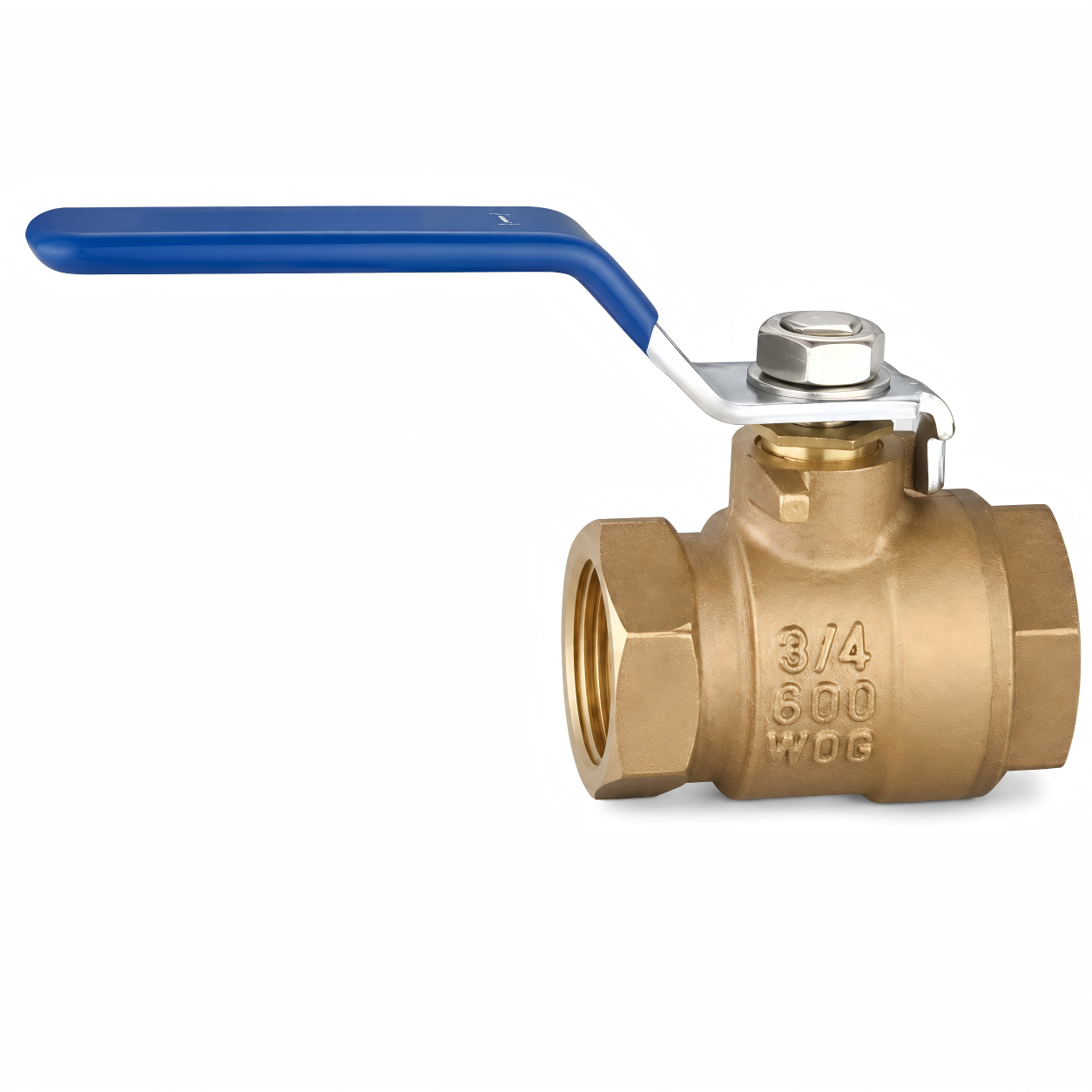

600 WOG full bore bronze ball valve featuring a bronze body, 304 stainless steel ball, blow-out proof brass stem and PTFE seats. Available with BSP or NPT threaded connections in sizes from 1/2″ to 4″.
The 600 WOG Full Bore Bronze Ball Valve is designed for reliable shut-off control in water supply, plumbing, HVAC, industrial and general piping systems.
The valve features a durable bronze body and bonnet, providing excellent corrosion resistance and long service performance. Its full bore design allows high flow capacity with reduced pressure loss.
Equipped with a 304 stainless steel ball, blow-out proof brass stem, PTFE seats and an EPDM O-ring, the valve delivers reliable sealing and smooth quarter-turn operation. The steel lever handle provides easy manual opening and closing.
BSP or NPT threaded connections are available in sizes from 1/2″ to 4″. The valve is rated at 600 PSI non-shock for sizes from 1/2″ to 2″, with a working temperature range of -20°C to 120°C.
Lead-free bronze materials are available upon request for drinking-water and environmentally sensitive applications.

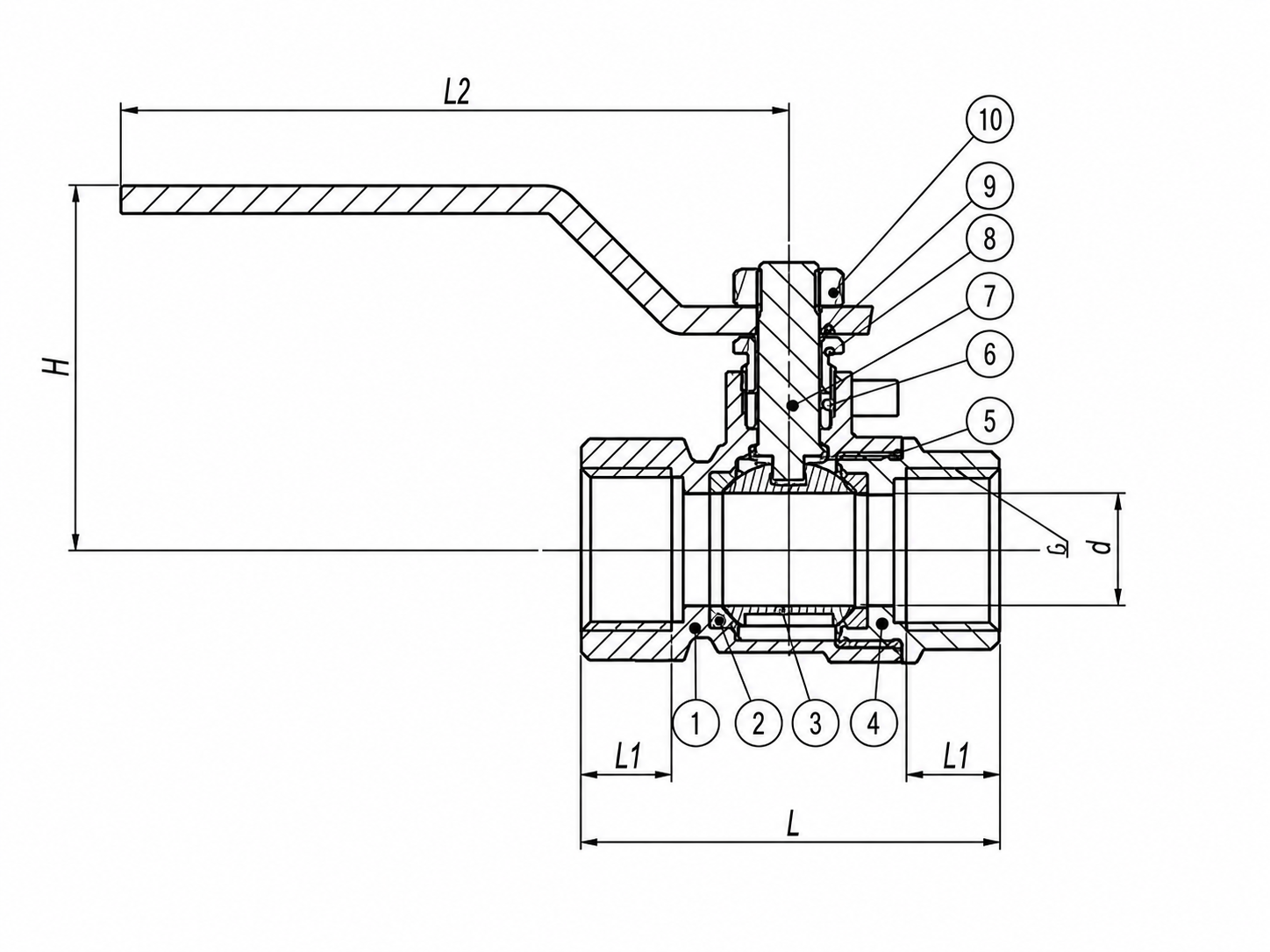

Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Full Bore Bronze Ball Valve |
| Body Material | Bronze |
| Bonnet Material | Bronze |
| Ball Material | 304 Stainless Steel |
| Stem Material | Brass |
| Seat Material | PTFE |
| O-Ring Material | EPDM |
| Packing Gland Material | PTFE |
| Gland Nut Material | Brass |
| Handle Material | Steel |
| Handle Nut Material | 304 Stainless Steel |
| Connection Type | BSP or NPT Thread |
| Size Range | 1/2″–4″ |
| Working Pressure | 600 PSI Non-Shock, 1/2″–2″ |
| Shell Test Pressure | 900 PSI for 1/2″–2″; 600 PSI for 2-1/2″–4″ |
| Seat Test Pressure | 900 PSI for 1/2″–2″; 600 PSI for 2-1/2″–4″ |
| Working Temperature | -20°C to 120°C |
| Bore Type | Full Bore |
| Stem Design | Blow-Out Proof |
| Optional Material | Lead-Free Bronze Available |
