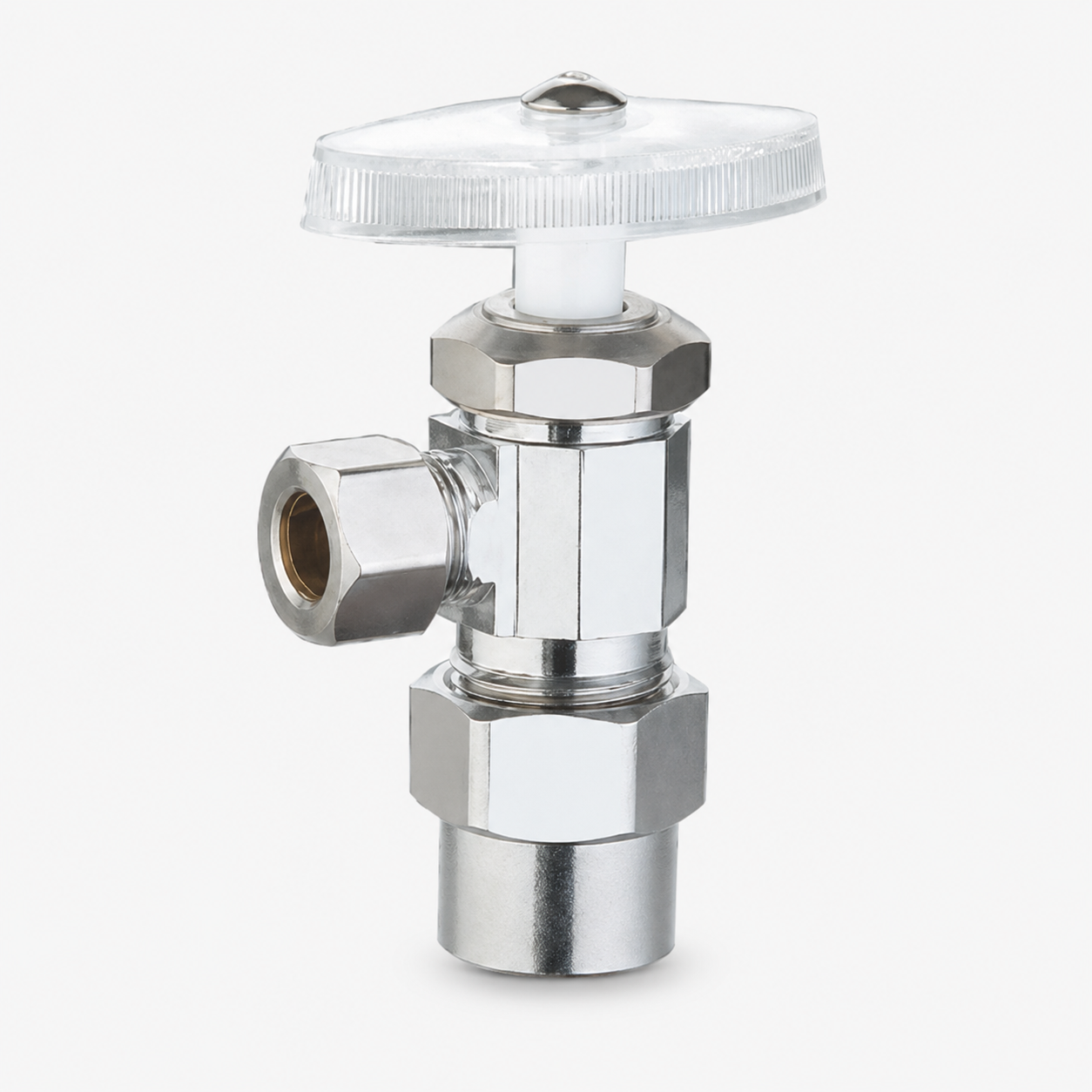

This CPVC angle valve combines a
1/2″ CPVC inlet with an OD outlet in a compact angle configuration.
According to the current product catalog, two connection combinations are listed:
1/2″ CPVC × 1/4″ OD and
1/2″ CPVC × 3/8″ OD.
The catalog does not specify the exact OD outlet connection method,
pressure rating, working temperature or material specification.
These details should therefore be confirmed according to the final purchasing requirement.
Key Features
Angle Valve Design
1/2″ CPVC Inlet
OD Outlet
Two Size Options
Product Specifications
| Parameter | Catalog Information |
|---|---|
| Product Type | Angle Valve |
| Inlet | 1/2″ CPVC |
| Outlet | 1/4″ OD or 3/8″ OD |
| Listed Size Options |
1/2″ CPVC × 1/4″ OD 1/2″ CPVC × 3/8″ OD |
| Exact OD Connection Method | To Be Confirmed |
| Pressure Rating | To Be Confirmed |
| Working Temperature | To Be Confirmed |
| Material Specification | To Be Confirmed |
Available Connection Sizes
The current catalog lists the following two connection combinations:
| CPVC Inlet | OD Outlet |
|---|---|
| 1/2″ CPVC | 1/4″ OD |
| 1/2″ CPVC | 3/8″ OD |
Technical Buyer Notes
Confirm the CPVC Connection Requirement
The inlet is identified in the catalog as 1/2″ CPVC.
Buyers should confirm that the required connection dimensions and installation
method match the target piping system before ordering.
OD Size Does Not Define the Connection Method
The outlet is listed by OD size: either 1/4″ OD
or 3/8″ OD.
OD refers to the outside diameter associated with the connection,
but the catalog does not identify the exact outlet connection structure.
For this reason, the outlet should not automatically be described as
a compression connection until this is confirmed.
Buyer Tip:
When requesting a quotation, specify the complete connection combination,
such as 1/2″ CPVC × 3/8″ OD, instead of requesting
only a “1/2-inch angle valve.”
OEM & Purchasing Requirements
SUNRICH FLOW works with specialized manufacturing partners in
Yuhuan, Zhejiang, China, coordinating product specifications,
production, quality control, OEM requirements, packaging and shipment
for international buyers.
For this CPVC angle valve, OEM feasibility should be evaluated according
to the exact required product specification.
For quotation or OEM evaluation, buyers can provide:
- Required CPVC inlet size
- Required OD outlet size
- Exact outlet connection requirement
- Required quantity
- Reference product or drawing if available
- Logo, marking or packaging requirements if applicable
OEM Note:
OEM feasibility depends on the required product specification
and should be evaluated before production.
What Should Buyers Confirm Before Bulk Production?
The available catalog provides connection sizes but does not state
pressure, temperature or testing requirements.
Before bulk production, buyers should confirm:
- Correct CPVC inlet size
- Correct OD outlet size
- Outlet connection dimensions and structure
- Critical installation dimensions
- Valve operating condition
- Required pressure or leakage testing conditions
- Marking and packaging requirements
Quality Note:
No specific test pressure or testing standard is stated in the current catalog,
so testing requirements should be agreed according to the final purchasing specification.
Frequently Asked Questions
What sizes are available for this CPVC angle valve?
The current catalog lists 1/2″ CPVC × 1/4″ OD
and 1/2″ CPVC × 3/8″ OD.
What is the inlet connection?
The catalog identifies the inlet as 1/2″ CPVC.
What outlet sizes are available?
The listed outlet sizes are 1/4″ OD and 3/8″ OD.
Is the OD outlet a compression connection?
The current catalog provides the OD size but does not specify
the exact outlet connection method. This should be confirmed
before quotation.
What is the pressure rating?
A pressure rating is not stated in the current catalog information.
Required operating and testing conditions should be confirmed
according to the purchasing specification.
What information is needed for a quotation?
Please provide the CPVC inlet size, required OD outlet size,
connection requirement, quantity and any reference product
or drawing available.
Need a CPVC Angle Valve?
Send us your required CPVC inlet size, OD outlet size and quantity.
We can evaluate a suitable specification for your order.
