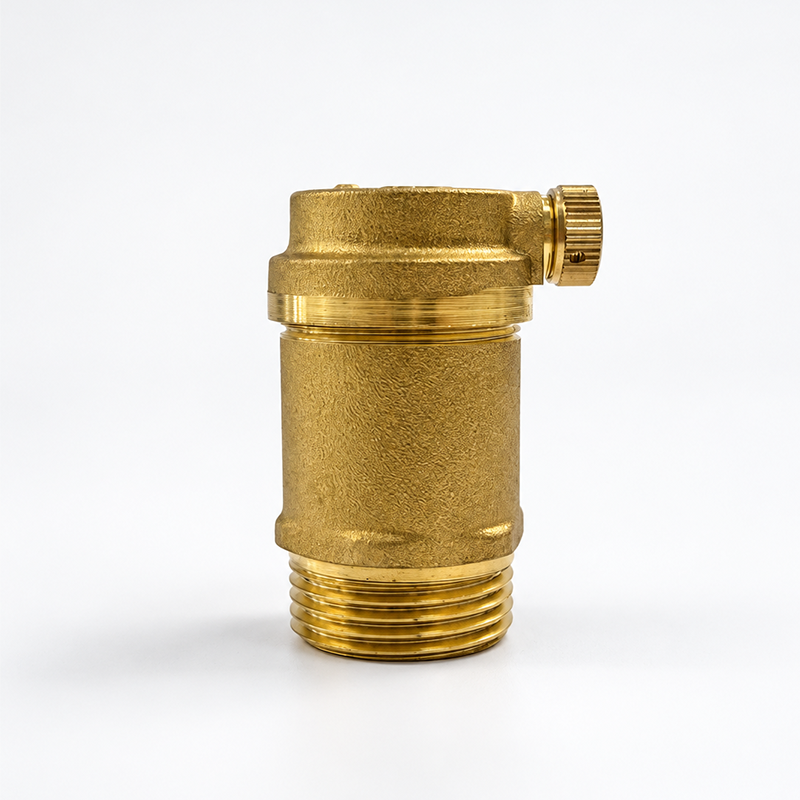

This brass automatic air vent valve features a side vent cap and a male threaded inlet connection.
The available product images also show an inlet screen positioned inside the threaded end.
The exact nominal size, thread standard, pressure rating, working temperature and internal operating mechanism are not confirmed by the current product information and should be checked before quotation.
Key Features
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Automatic Air Vent Valve |
| Body Material | Brass |
| Vent Configuration | Side Vent Cap |
| Connection | Male Threaded |
| Inlet Screen | Visible in Current Product Images |
| Nominal Size | To Be Confirmed |
| Thread Standard | To Be Confirmed |
| Working Pressure | To Be Confirmed |
| Working Temperature | To Be Confirmed |
| Working Medium | To Be Confirmed |
| Internal Mechanism | To Be Confirmed |
| Testing Standard | To Be Confirmed |
Technical Buyer Notes
Side Vent Configuration
This version is distinguished by a vent-cap assembly positioned on the side of the upper section.
Buyers replacing an existing air vent valve should compare the external configuration, connection size and installation space before ordering.
Buyer Tip: this side-vent model should not automatically be treated as identical to a top-vent version. Confirm the required configuration when requesting a quotation.
Male Threaded Inlet
The product uses an external male threaded connection.
However, the images do not confirm whether the thread is BSPP, BSPT, NPT or another standard.
The required pipe-thread specification should therefore be provided directly in the RFQ.
Inlet Screen

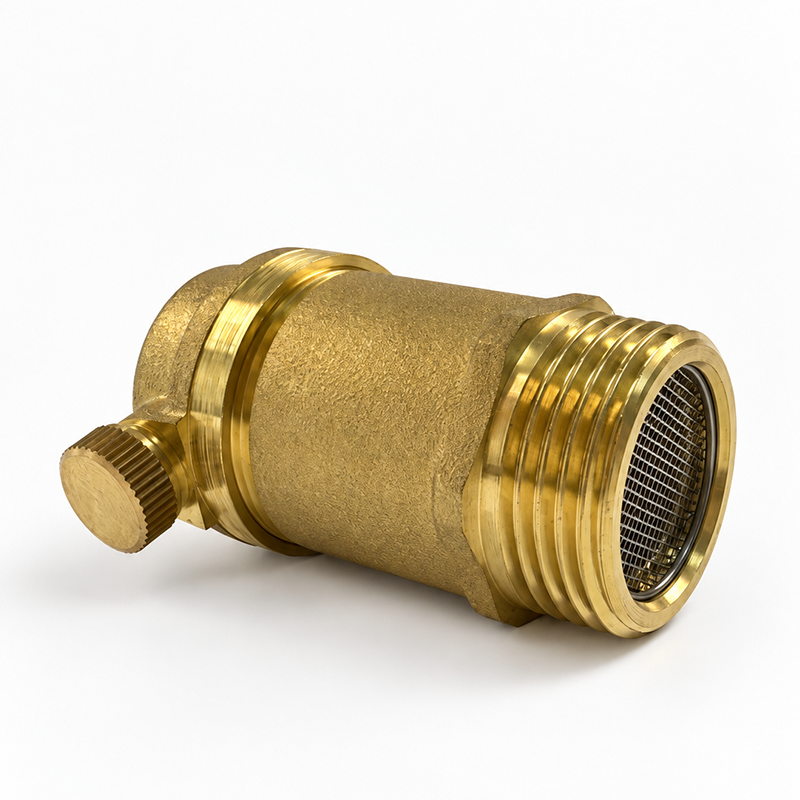

A screen is clearly visible inside the threaded inlet in the available close-up image.
The exact screen material, mesh specification and filtration performance are not confirmed by the current information.
Confirm Pressure and Temperature
No PN, PSI or other pressure marking is visible in the current product images.
Working pressure and temperature should therefore be specified according to the actual system requirement rather than inferred from product appearance.
Automatic Air Vent Applications
Automatic air vent valves are used at points where accumulated air needs to be released from a piping system.
Final application suitability should be confirmed according to the working medium, temperature, pressure and installation requirements of the system.
What Should Buyers Specify When Requesting a Quote?
For this side vent brass air vent valve, provide as much of the following information as possible:
- Required size
- Required quantity
- Side vent configuration
- Required thread standard
- Working pressure
- Working temperature
- Working medium
- Installation orientation
- Inlet screen requirements, if critical
- Testing requirements
- Logo or marking requirements
- Packaging requirements
- Reference drawing, photo or sample if available
Example RFQ
Product: Brass Automatic Air Vent Valve
Configuration: Side Vent Cap
Connection: Male Threaded
Size: Buyer to specify
Thread Standard: Buyer to specify
Working Pressure: Buyer to specify
Working Temperature: Buyer to specify
Quantity: Buyer to specify
OEM & Purchasing Support
SUNRICH FLOW works with specialized manufacturing partners in Yuhuan, Zhejiang, China, coordinating product specifications, production, quality control, OEM requirements, packaging and shipment for international buyers.
Thread, marking, packaging and other requirements can be evaluated according to the final product specification.
OEM Note: OEM feasibility depends on the required product specification and should be evaluated before production.
Quality & Order Confirmation
Before bulk production, confirmed purchasing requirements should be used as the basis for product inspection.
- Correct nominal size
- Male threaded inlet
- Required thread dimensions and standard
- Side vent-cap configuration
- Inlet screen configuration
- Critical overall dimensions
- Required working pressure
- Functional air-release requirements
- Testing requirements
- Marking and packaging requirements
Quality Note: no specific pressure-test value, leakage requirement or testing standard is confirmed in the current product information. These requirements should be agreed before production.
Frequently Asked Questions
What type of air vent valve is this?
This product is presented as a brass automatic air vent valve with a side vent-cap configuration.
What connection does this valve use?
The current images show a male threaded inlet.
Is the thread BSP or NPT?
The exact thread standard cannot be confirmed from the images and should be specified before quotation.
Does it have an inlet screen?
Yes. A screen is visible inside the male threaded inlet in the current product image.
What is the working pressure?
No working pressure is confirmed by the currently available product information.
What sizes are available?
The exact available size range is not confirmed and should be checked according to the purchasing requirement.
Is this the same as the top-vent version?
The side-vent and top-vent products have visibly different upper configurations. Their exact model relationship should be confirmed before treating them as interchangeable versions.
What information should I provide for a quotation?
Please provide size, thread standard, working pressure, temperature, medium, quantity and any applicable OEM or packaging requirements.
Need a Side Vent Brass Automatic Air Vent Valve?
Share your required size, thread standard, pressure, temperature and quantity. We can evaluate the required specification before quotation.
