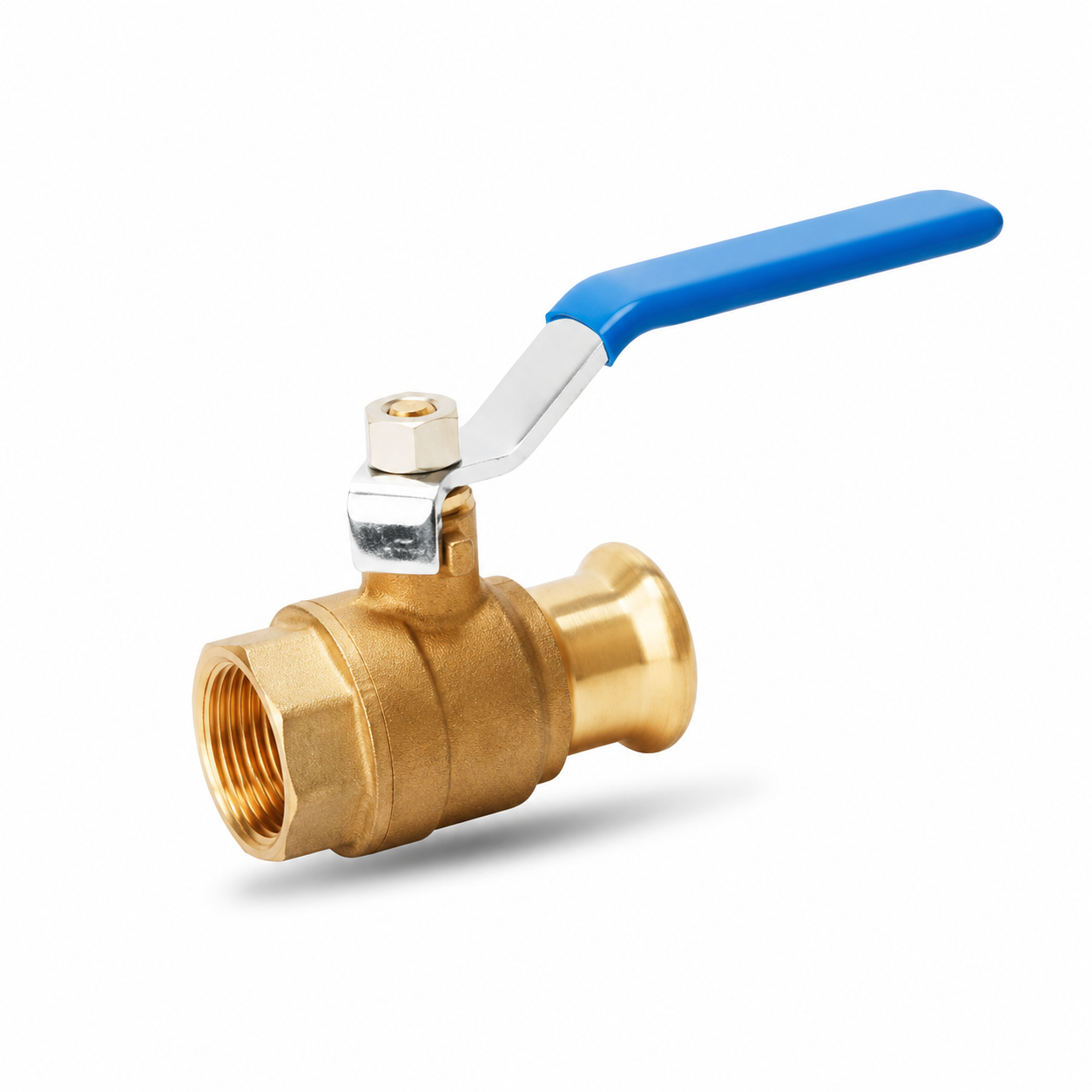

Brass Press Ball Valve with Female Thread × Copper Tube Press End
Brass press ball valve with one female threaded end and one copper tube press connection, designed for mixed threaded-to-copper piping installations. Available from 1/2″ × 15 mm to 2″ × 54 mm, with BSP, BSPT or NPT female thread options and a blue quarter-turn lever handle.
This brass press ball valve with female thread × copper tube
press connection combines two different connection methods
in one compact quarter-turn valve.
One side uses a female threaded connection for compatible threaded
pipe, fittings or equipment, while the opposite side connects to
compatible metric copper tube through a press-fit connection.
The available size range runs from
1/2″ × 15 mm to 2″ × 54 mm.
Female thread options include BSP, BSPT and NPT according to the
required product configuration.
This mixed-connection design can be useful where an existing
threaded component needs to transition directly into a copper
tube system without adding a separate threaded-to-press adapter.
Key Product Features
A mixed-connection ball valve for buyers working with both
threaded piping components and copper tube systems.
Female Thread × Press Connection
Combines a female pipe thread on one side with a copper
tube press connection on the other.
Brass Valve Body
Brass body with natural brass external finish in the
standard product configuration.
1/2″ × 15 mm to 2″ × 54 mm
Six thread-and-tube size combinations cover a broad
range of plumbing requirements.
BSP / BSPT / NPT
Female thread options can be evaluated according to the
required piping standard and destination market.
Quarter-Turn Operation
Blue lever handle provides simple manual opening and
closing through approximately 90° of rotation.
OEM Project Support
Product marking, handle requirements, labels and packaging
can be evaluated according to the project.
Technical Specifications
Current confirmed information for this brass press ball valve.
| Product Type | Brass Press Ball Valve |
|---|---|
| Body Material | Brass |
| Surface Finish | Natural Brass |
| Connection | Female Thread × Copper Tube Press Connection |
| Female Thread Options | BSP / BSPT / NPT |
| Press-End Application | Compatible Metric Copper Tube |
| Available Sizes |
1/2″ × 15 mm, 3/4″ × 22 mm, 1″ × 28 mm, 1-1/4″ × 35 mm, 1-1/2″ × 42 mm, 2″ × 54 mm |
| Handle | Blue Lever Handle |
| Operation | Manual Quarter-Turn |
| Press Profile | To be confirmed according to the required press system |
| Port Type | To be confirmed according to final product specification |
| Working Pressure | To be confirmed |
| Working Temperature | To be confirmed |
| Sealing Material | To be confirmed according to final configuration |
| Applications |
Water supply, plumbing, HVAC and compatible general pipeline shut-off applications |
| OEM / Private Label | Available for evaluation according to project requirements |
Buyer Note:
the press profile, sealing material, pressure rating,
working temperature and port configuration should be confirmed
before quotation when they are important project requirements.
Available Size Combinations
The inch dimension refers to the female threaded connection,
while the metric dimension refers to the corresponding
copper tube press connection.
| Female Thread | Copper Tube Press Size | Connection |
|---|---|---|
| 1/2″ | 15 mm | Female Thread × Press |
| 3/4″ | 22 mm | Female Thread × Press |
| 1″ | 28 mm | Female Thread × Press |
| 1-1/4″ | 35 mm | Female Thread × Press |
| 1-1/2″ | 42 mm | Female Thread × Press |
| 2″ | 54 mm | Female Thread × Press |
Do not specify only one side of the valve when requesting
a quotation. A clearer purchasing description is, for example,
3/4″ Female BSP × 22 mm copper tube press connection.
Why Use a Female Thread × Press Connection?
Many piping installations contain both threaded equipment
connections and copper tube sections.
A conventional Female × Female threaded ball valve may require
an additional adapter before it can connect to the copper tube.
A valve with a threaded end on one side and a press connection
on the other can simplify this transition where the dimensions
and connection systems are compatible.
This can be useful around pumps, equipment connections,
branch lines and other locations where the piping system
changes from threaded components to copper tube.
Copper Tube Press Connection
The metric end of the valve is designed for installation
with compatible copper tube using a suitable press system.
During installation, the prepared tube is inserted into
the press end and mechanically compressed using the
appropriate press tool and jaw.
The exact press profile is an important purchasing parameter.
Different press systems may use different connection geometry,
sealing rings and jaw profiles.
Buyers should therefore confirm the
tube outside diameter, press profile, sealing material
and press-tool compatibility before ordering.
Press Profile and Tool Compatibility
The term “press-fit” does not mean that every press valve
can be installed with every pressing tool.
Press connection profiles and jaw geometries can differ
between piping systems. The compatible tooling must match
the final valve configuration.
If you are replacing an existing press valve, provide the
current valve datasheet, press profile, tube information
or reference sample whenever possible.
Important:
do not assume that different press profiles or press jaws
are automatically interchangeable.
BSP, BSPT or NPT Female Thread?
The threaded side can be evaluated with
BSP, BSPT or NPT according to the required
product specification.
A nominal size such as “1/2 inch” does not completely identify
the thread. BSP-family and NPT threads use different geometry
and should not normally be treated as interchangeable.
Buyers should specify the exact thread standard together with
the size and mating component whenever possible.
For a detailed technical comparison, see
BSP vs NPT Threads: What Brass Valve Buyers Should Know
.
Typical Applications
Final suitability depends on the confirmed pressure,
temperature, sealing materials and working medium.
Water Supply
Manual shut-off where a threaded connection transitions
into a compatible copper tube water line.
Plumbing Systems
Mixed threaded-to-press connection for compatible
residential and commercial plumbing installations.
HVAC Water Lines
Can be evaluated for compatible water-based HVAC
piping and equipment connections.
Heating & Cooling Lines
Can be evaluated for compatible hydronic applications
after temperature and sealing requirements are confirmed.
Equipment Connections
Useful where threaded equipment needs to connect
directly to compatible copper tube.
Distribution & OEM
Suitable for evaluation by plumbing distributors,
wholesalers and private-label buyers.
What Should Buyers Confirm Before Ordering?
Mixed-connection valves require both sides of the product
specification to be clearly defined.
- Required female thread size
- Required BSP, BSPT or NPT thread standard
- Required copper tube outside diameter
- Copper tube specification
- Required press profile
- Press-tool and jaw compatibility
- Required working pressure
- Required working temperature
- Working medium
- Required sealing-ring material, when specified
- Full-port or reduced-port requirement, if important
- Required brass grade, when applicable
- Quantity for each size
- Logo and product marking
- Handle color or identification requirements
- Private-label packaging requirements
What to Include in Your RFQ
A complete RFQ helps avoid connection mismatches
between the threaded and press sides.
Product:
Brass Press Ball Valve
Connection:
Female Thread × Copper Tube Press
Size:
Example: 3/4″ × 22 mm
Female Thread:
BSP / BSPT / NPT
Press Profile:
Specify the required system
Pressure:
Specify required operating pressure
Temperature:
Specify actual operating range
Medium:
Specify working medium
Quantity:
Specify quantity by size
If the product must match an existing installation,
include drawings, photos, a technical datasheet or physical
sample whenever available.
OEM and Private-Label Supply
SUNRICH FLOW works with manufacturing partners to coordinate
product specifications, production requirements, quality follow-up,
marking and packaging for international brass valve buyers.
OEM feasibility depends on the required product configuration,
quantity and confirmed technical requirements.
Thread Requirements
BSP, BSPT or NPT requirements can be reviewed according
to the selected valve configuration.
Press Connection
Press profile and tube requirements can be evaluated
according to the project specification.
Logo & Marking
Product marking and private-label identification can be
evaluated for applicable OEM orders.
Packaging
Labels, inner boxes, export cartons and other packaging
requirements can be reviewed according to the order.
Learn more about our
OEM & Custom Brass Valve Solutions
.
Quality and Order Confirmation
Inspection requirements should be based on the confirmed
valve specification and buyer requirements.
- Brass body appearance and surface condition
- Female thread standard and dimensions
- Press-end dimensions
- Sealing-ring condition
- Critical dimensions where specified
- Handle installation and quarter-turn operation
- Ball opening and closing movement
- Pressure and leakage requirements where agreed
- Product marking and labeling
- Packaging and quantity
Specific test pressure, test duration, leakage limits and
acceptance criteria should be confirmed when they form part
of the purchasing specification.
Learn more about our
Brass Valve Quality Control
.
Frequently Asked Questions
What connection types does this valve use?
One side uses a female threaded connection and the other
side uses a press connection for compatible metric copper tube.
What sizes are available?
Available combinations currently range from 1/2″ × 15 mm
to 2″ × 54 mm.
What does 3/4″ × 22 mm mean?
The 3/4″ dimension refers to the female threaded side,
while 22 mm refers to the compatible copper tube press side.
Can BSP or NPT threads be supplied?
BSP, BSPT and NPT female-thread options can be evaluated
according to the required product configuration.
What press profile does the valve use?
The current product information does not define one fixed
press profile for all configurations. Specify the required
press system before quotation.
Can I use any press tool?
No. Tube dimensions, press profile, jaw geometry and
valve connection must be compatible with the selected system.
What is the pressure rating?
A fixed pressure rating is not currently confirmed for
this product page. Provide the required working pressure
for confirmation before ordering.
What sealing material is used?
The sealing material should be confirmed according to
the final valve configuration and application requirements.
Is this a full-port ball valve?
The current information does not confirm the port type.
If full port or reduced port is required, specify this
in the RFQ.
Can the valve be supplied for OEM projects?
Thread, press requirements, product marking, handle details
and packaging can be evaluated according to the project
specification and quantity.
What information should I provide for a quotation?
Provide the threaded size and standard, copper tube size,
press profile, quantity, working pressure, temperature,
medium and any OEM or packaging requirements.
Looking for Female Thread × Press Brass Ball Valves?
Send us your female thread size and standard, copper tube size,
press profile, quantity and operating requirements.
SUNRICH FLOW can review the required configuration and prepare
a quotation for your project.
