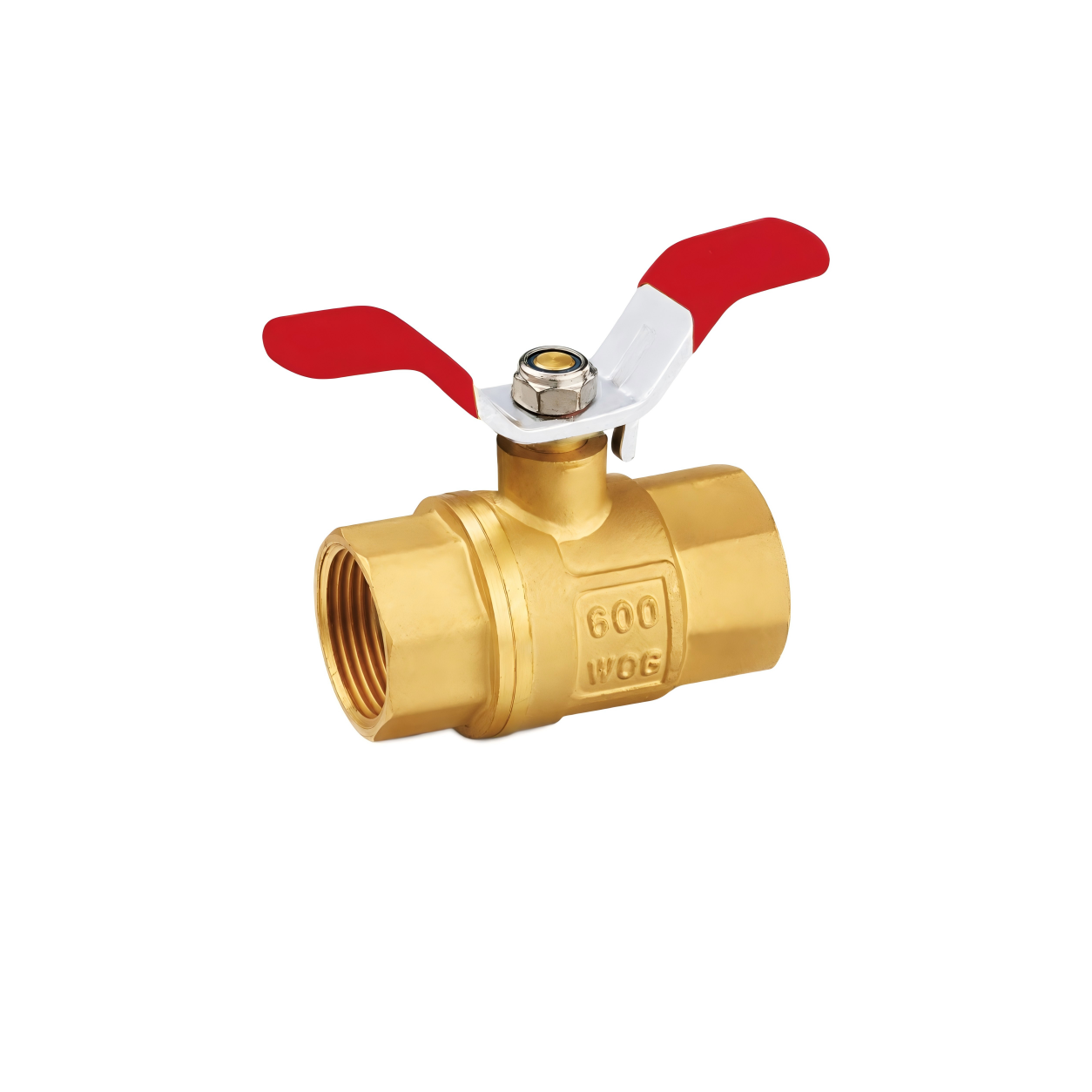

Full Port Brass Ball Valve with Female Threaded Ends and Butterfly Handle

SUNRICH FLOW supplies full port brass ball valves with Female x Female threaded ends and red butterfly handles for water supply, plumbing, HVAC, compressed air, oil and general pipeline shut-off applications.

This model features a 2-piece brass valve body, full port flow passage, compact butterfly handle and internal threaded connections on both ends. The butterfly handle requires less operating space than a conventional long lever handle, making the valve suitable for compact installations and small pipeline systems.

This brass ball valve is suitable for importers, wholesalers, plumbing distributors, hardware stores, contractors and OEM brand customers looking for reliable brass valves from China. Thread standards, handle colors, logo marking and packaging can be customized according to customer requirements.

Key Features

• Brass valve body for plumbing and pipeline applications
• Full port design for reduced flow restriction
• 2-piece valve body structure
• Female x Female threaded connections
• Compact red butterfly handle
• Quarter-turn open and close operation
• Suitable for water, air, oil and compatible non-corrosive fluids
• Pressure rating of 600 PSI WOG non-shock
• Temperature range from -20°C to 120°C
• Available from 1/4″ to 1″
• BSP, BSPT and NPT thread options available
• OEM logo, handle color and packaging can be customized
• Factory-direct supply for importers and distributors

Technical Specifications

Product Name: Full Port Brass Ball Valve with Female Threaded Ends and Butterfly Handle
Valve Type: Ball valve
Body Structure: 2-piece
Port Type: Full port
Body Material: Brass
Surface Finish: Natural brass
Connection Type: Female x Female threaded ends
Thread Standard: BSP, BSPT or NPT available
Handle Type: Red butterfly handle
Available Sizes: 1/4″, 3/8″, 1/2″, 3/4″, 1″
Pressure Rating: 600 PSI / 41.3 bar WOG non-shock
Temperature Range: -4°F to 248°F / -20°C to 120°C
Working Medium: Water, air, oil and compatible non-corrosive fluids
Application: Plumbing, HVAC and general pipeline shut-off
OEM Service: Logo, handle color, product labels and customized packaging available
Packing: Neutral box, color box, export carton or customized packaging

Available Size Options

• 1/4″
• 3/8″
• 1/2″
• 3/4″
• 1″

Please confirm the required size, thread standard, pressure requirement, working medium and packaging before quotation.

Full Port Design

The full port design provides an internal flow passage close to the nominal pipe diameter when the valve is fully open. This helps reduce flow restriction and pressure loss compared with standard port or reduced port ball valves.

The design is suitable for applications where good flow capacity and reliable shut-off performance are required.

Compact Butterfly Handle

The red butterfly handle provides quarter-turn operation while requiring less clearance than a long lever handle.

This compact handle design is suitable for:

• Limited installation spaces
• Small pipeline systems
• Equipment connections
• Plumbing cabinets
• HVAC units
• Residential water supply installations

Female x Female Threaded Connection

Both valve ends have internal threaded connections. Buyers should confirm the required BSP, BSPT or NPT standard before ordering.

BSP threads are commonly requested in Brazil, Europe and many international plumbing markets. NPT threads are often required in Mexico, Colombia, the United States and other American markets.

Applications

This full port brass ball valve is commonly used for:

• Residential water supply
• Commercial plumbing
• HVAC pipeline systems
• Compressed air lines
• Oil pipeline applications
• Irrigation systems
• Pump and equipment connections
• General pipeline shut-off control
• Hardware and plumbing distribution channels

Pressure and Temperature

This model is rated at 600 PSI WOG non-shock, equivalent to approximately 41.3 bar.

The listed operating temperature range is -4°F to 248°F, equal to -20°C to 120°C.

Final suitability should be confirmed according to the working medium, sealing material, thread standard and application conditions.

Material and Customization Options

The standard model features a natural brass body and red butterfly handle.

Available customization options include:

• Nickel plated body
• Different brass material grades
• Red, blue, yellow or customized handle colors
• Customer logo marking
• Handle printing
• Private label packaging
• Barcode labels
• Customized inner boxes
• Export cartons and pallet packaging

OEM and Packaging

SUNRICH FLOW supports OEM and private label services for brass ball valves.

For an accurate quotation, please provide:

• Required size
• Thread standard
• Order quantity
• Working pressure
• Working medium
• Material requirement
• Packaging requirement
• Destination port

Quality Control

Common inspection items include:

• Brass body appearance
• Thread dimension and accuracy
• Handle operation
• Ball rotation
• Seat sealing performance
• Leakage testing
• Pressure testing
• Final packaging inspection

For bulk orders, pre-shipment inspection and customized testing requirements can be arranged.

FAQ

Q1: What is this brass ball valve used for?
This valve is used for water, air, oil, plumbing, HVAC and general pipeline shut-off applications.

Q2: What does full port mean?
Full port means the internal flow passage is designed to reduce flow restriction when the valve is fully open.

Q3: What does Female x Female mean?
Female x Female means both valve ends have internal threaded connections.

Q4: What sizes are available?
The available sizes are 1/4″, 3/8″, 1/2″, 3/4″ and 1″.

Q5: What is the pressure rating?
The listed pressure rating is 600 PSI / 41.3 bar WOG non-shock.

Q6: What is the temperature range?
The listed temperature range is -20°C to 120°C.

Q7: What is the advantage of the butterfly handle?
The butterfly handle is compact and suitable for areas where a long lever handle does not have enough operating clearance.

Q8: Can you supply BSP or NPT threads?
Yes. BSP, BSPT and NPT thread options can be supplied according to customer requirements.

Q9: Can the handle and packaging be customized?
Yes. Handle color, logo marking, product labels, boxes and export cartons can be customized for OEM orders.

Q10: What information is required for quotation?
Please send the size, thread standard, quantity, working pressure, working medium, packaging requirement and destination port.
