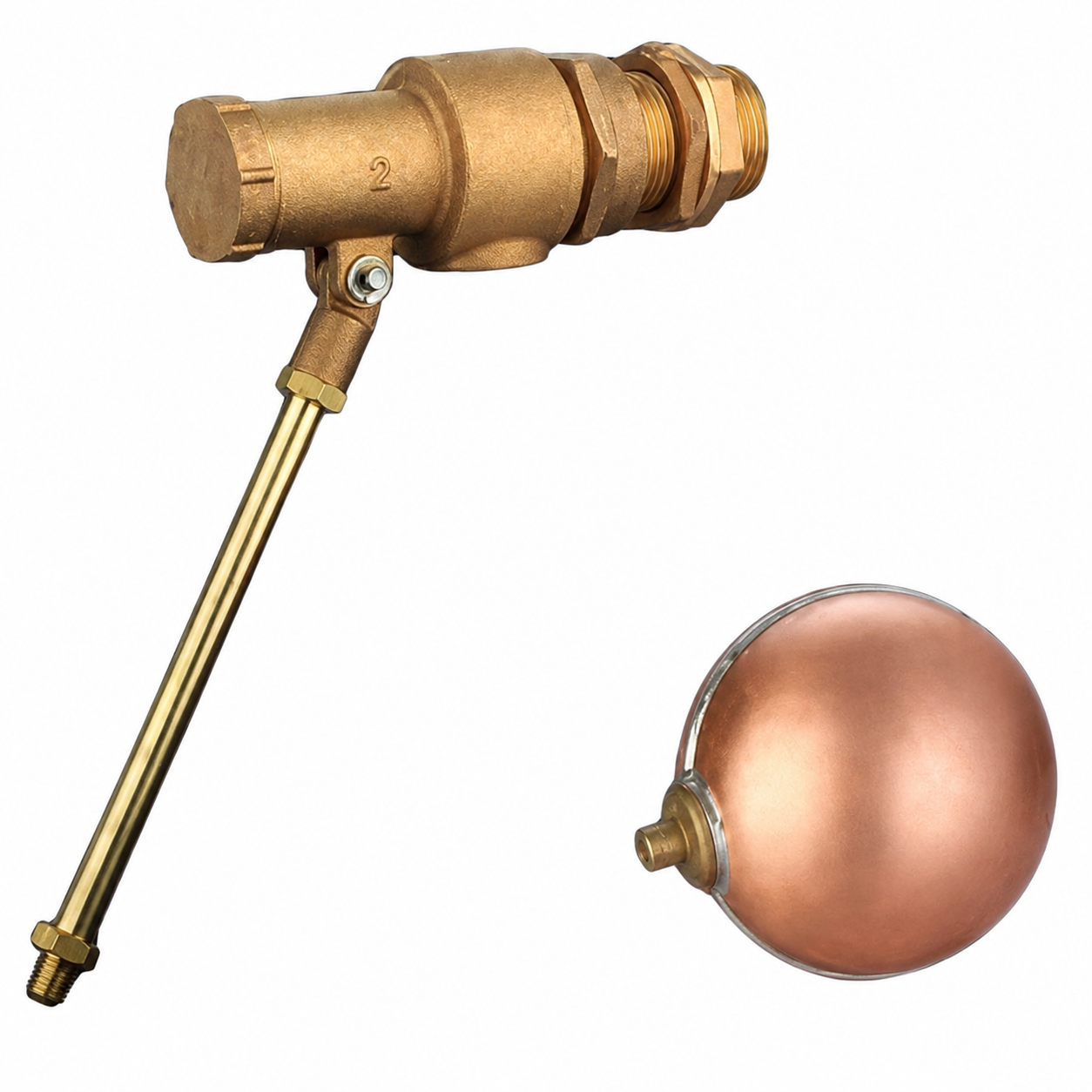

This bronze float valve with copper ball is designed for automatic water-level control in tanks, reservoirs and water supply systems.
As the liquid level rises or falls, the copper float moves the lever mechanism to automatically open or close the inlet.
The valve features a bronze body and main internal components, a copper floating ball, EPDM seals and selected brass and 304 stainless steel components.
BSP and NPT threaded connections are available for different piping markets and installation requirements.
Selected sizes are available from 1/2″ to 6″, making the series suitable for both small water tanks and larger commercial or industrial water-level control applications.
1. Key Features
Bronze Valve Body
Copper Float Ball
Automatic Level Control
BSP / NPT Threads
1/2″–6″ Selected Sizes
EPDM Sealing
Lead-Free Option
OEM Available
2. How Does a Bronze Float Valve Work?
A mechanical float valve controls the inlet flow according to the liquid level inside a tank.
As the water level decreases, the copper float ball moves downward with the lever arm.
Movement of the lever operates the internal piston mechanism and allows water to enter the tank.
As the tank fills, the copper float rises with the water level.
When the required water level is reached, the lever moves the piston toward the closed position and restricts the inlet flow.
3. Technical Specifications
| Product Type | Bronze Float Valve with Copper Ball |
|---|---|
| Valve Body | Bronze |
| Float Ball | Copper |
| Sealing Material | EPDM |
| Selected Components | Brass / 304 Stainless Steel |
| Connection | Male Threaded Inlet |
| Thread Standard | BSP / NPT |
| Available Sizes | Selected sizes from 1/2″ to 6″ |
| Working Pressure | 1.0 MPa Non-Shock |
| Shell Test Pressure | 1.5 MPa Hydrostatic |
| Seat Test Pressure | 1.1 MPa Hydrostatic |
| Additional Test Pressure | 116 psi / 8.0 bar |
| Working Temperature | -20°C to 120°C |
| Installation | Side Entry |
| Control Function | Automatic Liquid-Level Control |
| Optional Material | Lead-Free Bronze Available |
4. Materials and Construction
The valve combines bronze, brass, stainless steel, EPDM and copper components according to the function of each part.
| Component | Material |
|---|---|
| Valve Body | Bronze |
| Inlet Shank | Bronze |
| Piston | Bronze |
| Retaining / Piston Components | Bronze |
| Lever / Selected Components | Brass |
| Pin / Selected Nuts and Washers | 304 Stainless Steel |
| Gaskets / O-Rings | EPDM |
| Floating Ball | Copper |
Lead-free bronze construction is available upon request.
If a specific alloy grade or drinking-water approval is required for your market, please provide the required material specification or certification standard before ordering.

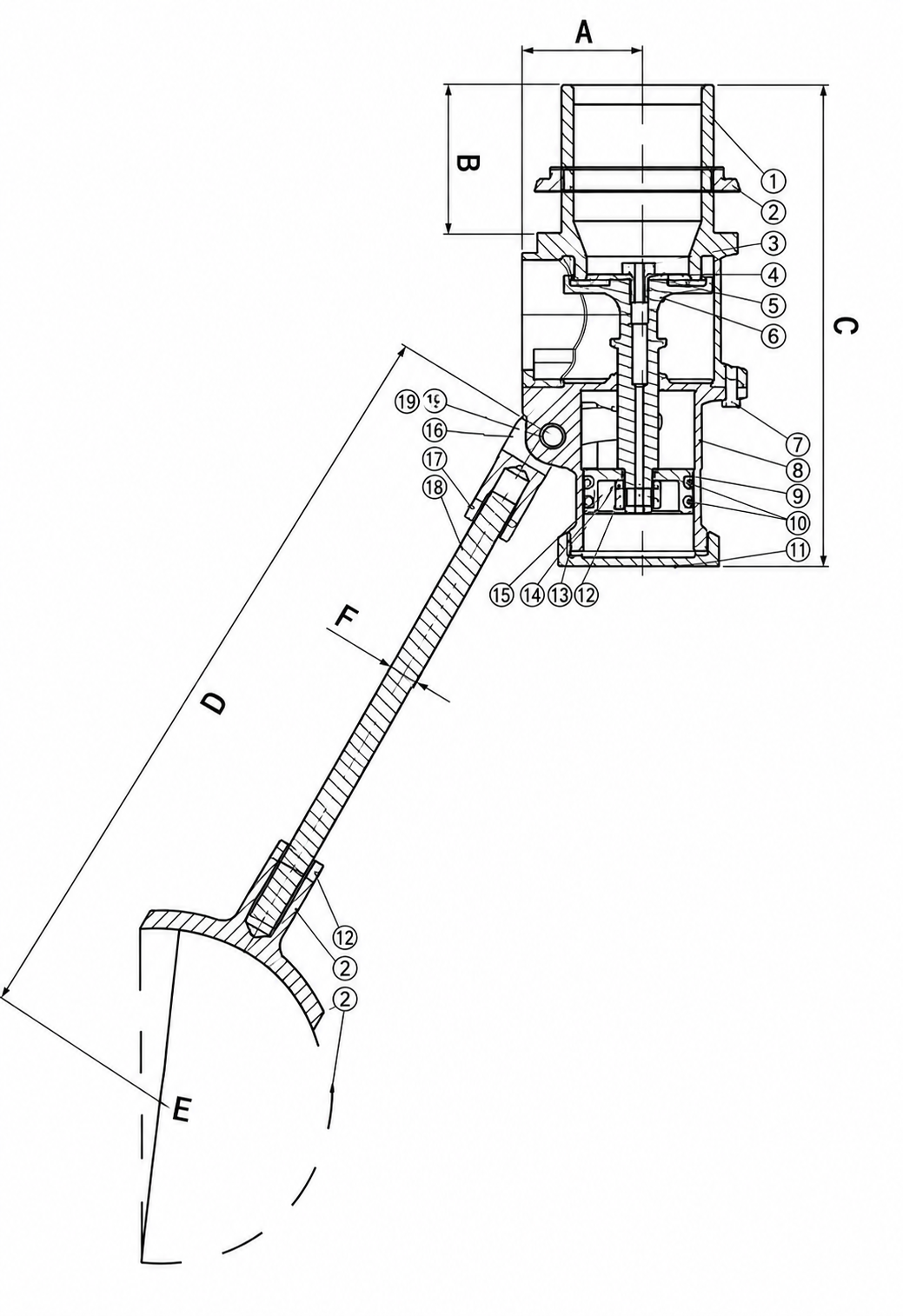

5. Size and Dimensions
The CMG1280-type bronze float valve series covers selected sizes from 1/2″ to 6″.
Copper float ball diameter and lever dimensions increase according to valve size.
| Size | A | B | C | D | Float Ball ØE | Rod ØF |
|---|---|---|---|---|---|---|
| 1/2″ | 16.5 | 59.5 | — | 190.5 | Ø100 | Ø6 |
| 3/4″ | 21.5 | 64.5 | — | 225 | Ø120 | Ø8 |
| 1″ | 26.5 | 81.5 | — | 290 | Ø150 | Ø10 |
| 1-1/4″ | 35 | 114 | — | 290 | Ø200 | Ø14 |
| 1-1/2″ | 35 | 114 | — | 435 | Ø200 | Ø14 |
| 2″ | 44 | 134 | — | 525 | Ø250 | Ø16 |
| 2-1/2″ | 56 | 75 | 232 | 648 | Ø250 | Ø16 |
| 3″ | 64 | 85 | 277 | 680 | Ø300 | Ø19 |
| 4″ | 76 | 101 | 328 | 700 | Ø350 | Ø19 |
| 6″ | 106 | 133 | 432 | 790 | Ø420 | Ø22 |
Dimensions are in millimeters. Available sizes shown are based on the current technical specification. Confirm final dimensions before placing an OEM or project order.
6. Copper Float Ball Sizes
The copper float ball is sized according to the valve and lever configuration.
Larger valves use larger copper floats to provide the mechanical movement required by the float-control mechanism.
| Valve Size | Copper Float Ball Diameter |
|---|---|
| 1/2″ | Ø100 mm |
| 3/4″ | Ø120 mm |
| 1″ | Ø150 mm |
| 1-1/4″ | Ø200 mm |
| 1-1/2″ | Ø200 mm |
| 2″ | Ø250 mm |
| 2-1/2″ | Ø250 mm |
| 3″ | Ø300 mm |
| 4″ | Ø350 mm |
| 6″ | Ø420 mm |
7. Common Applications
Mechanical bronze float valves are commonly used where the liquid level needs to be maintained automatically as water is consumed or discharged.
Water Storage Tanks
Cisterns & Reservoirs
Cooling Water Systems
Cooling Towers
Irrigation Systems
Agricultural Water Tanks
Commercial Water Tanks
Industrial Water Supply
Please confirm project conditions before selection.
8. BSP and NPT Thread Options
BSP and NPT threaded versions are available to meet different market and piping requirements.
The required thread standard should be confirmed when requesting a quotation or sample.
BSP and NPT threads are not interchangeable simply because they have the same nominal pipe size.
For OEM or replacement projects, provide the required thread standard before production.
9. OEM and Private Label Options
For importers, wholesalers and distributors, the bronze float valve can be supplied as part of an OEM or private-label project.
Depending on order requirements, customization can include product marking, packaging, thread specification and material options.
For projects requiring a specific bronze alloy or certification, provide the target specification during the quotation stage.
Looking for Bronze Float Valves?
Send us your required sizes, BSP or NPT thread standard, quantity and target application.
We can evaluate the specification and prepare a quotation for your project.
