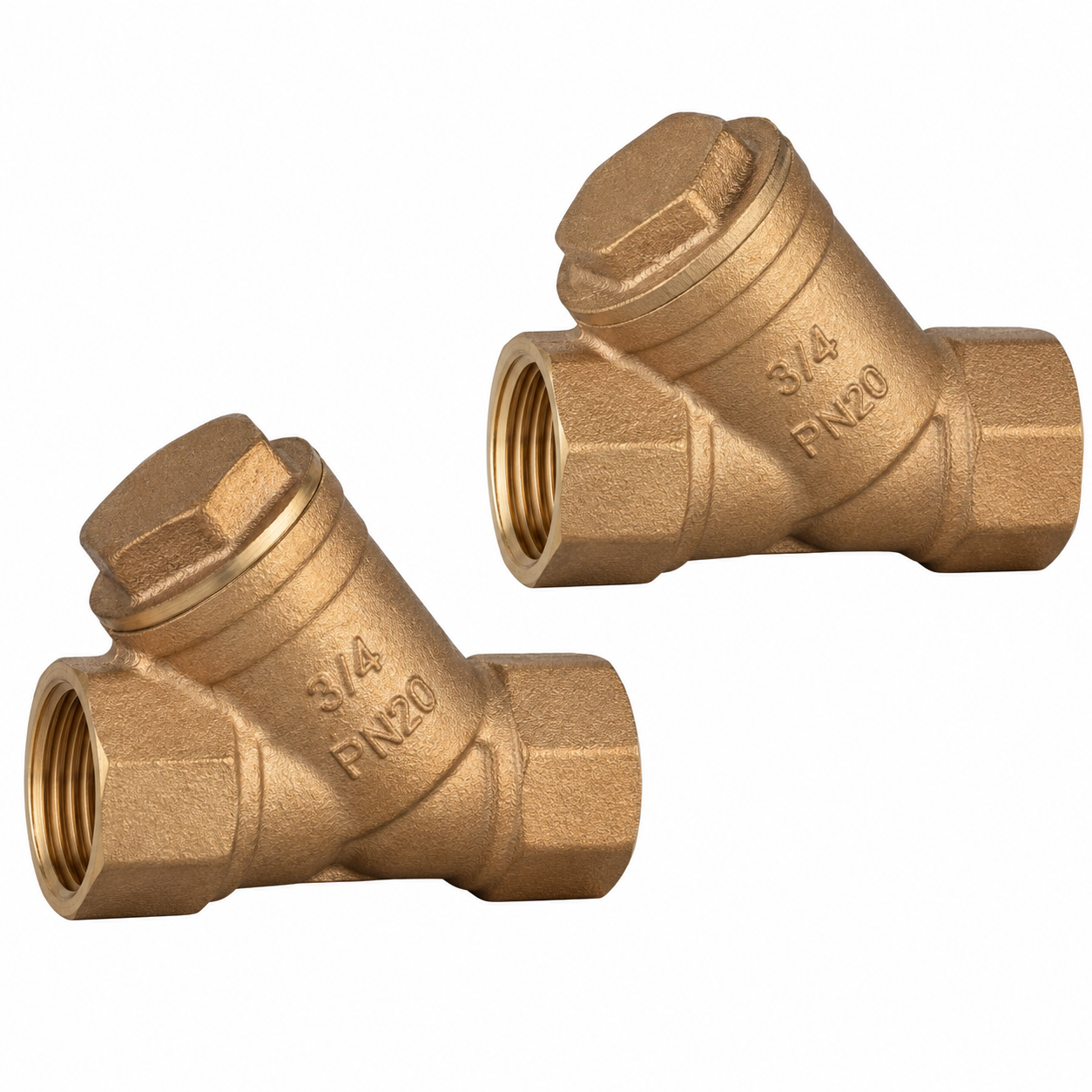

Bronze threaded Y strainer with BSP or NPT female connections, bronze body, removable 304 stainless steel mesh and asbestos-free PTFE gasket. Available in sizes from 1/2″ to 2″, with a non-shock working pressure of up to 2.0 MPa.

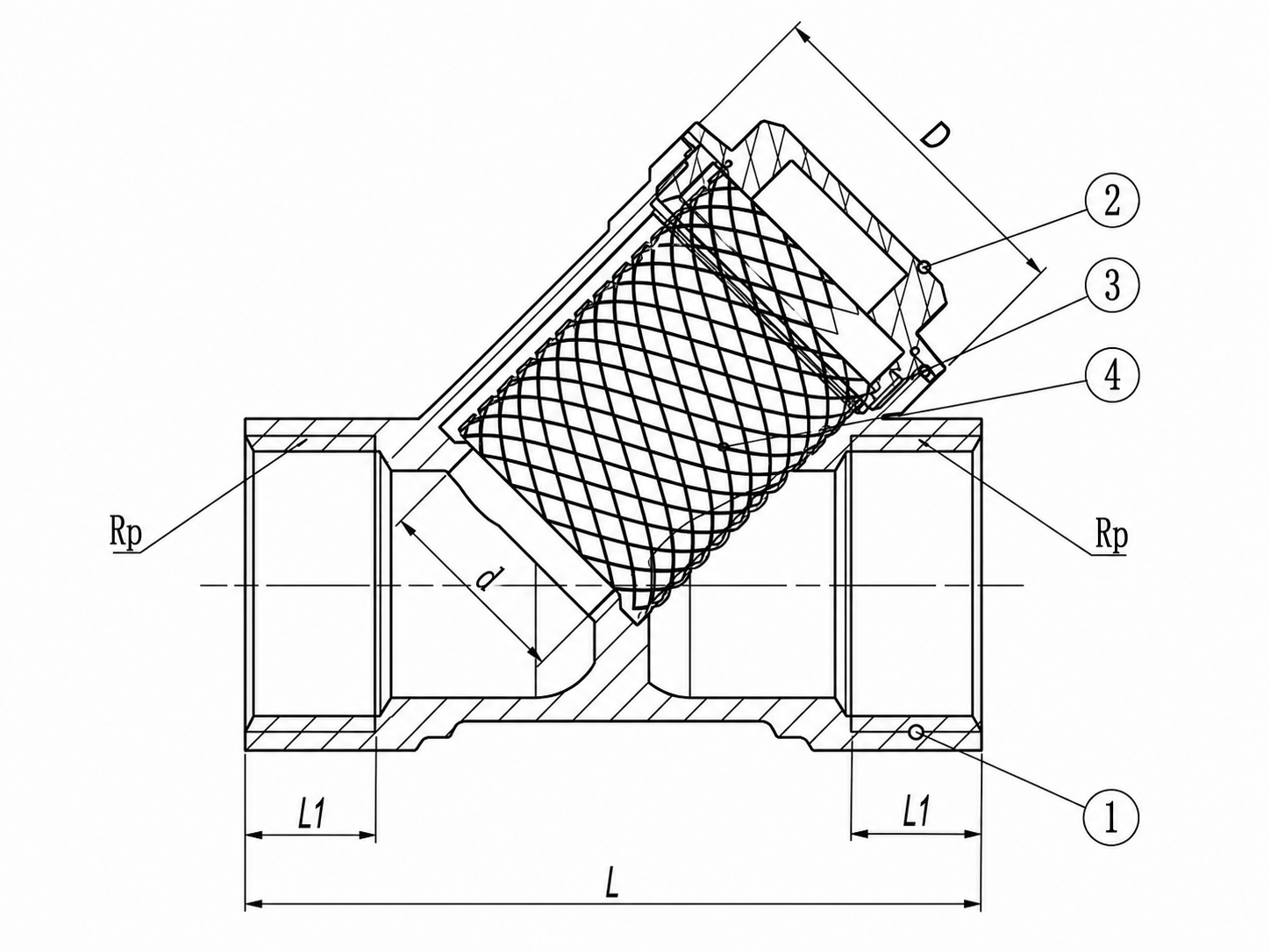

Bronze threaded Y strainer designed to remove rust, scale, debris and other solid particles from water supply, plumbing, marine, HVAC and general industrial piping systems. The angled filter chamber contains a removable 304 stainless steel mesh screen, helping protect valves, pumps, meters and other downstream equipment from blockage and damage.
The strainer features a durable bronze body and bonnet with an asbestos-free PTFE gasket. BSP or NPT female threaded connections are available to meet different installation and market requirements.
Standard sizes range from 1/2″ to 2″, with a maximum non-shock working pressure of 2.0 MPa and an operating temperature range from -20°C to 120°C. The removable bonnet allows convenient screen inspection, cleaning and maintenance. Lead-free bronze material, customized marking and OEM packaging are available upon request.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Y Strainer |
| Body Material | Bronze |
| Bonnet Material | Bronze |
| Filter Screen Material | 304 Stainless Steel |
| Gasket Material | PTFE |
| Gasket Type | Asbestos-Free |
| Connection Type | Female Threaded |
| Thread Standard | BSP or NPT |
| Size Range | 1/2″ to 2″ |
| Working Pressure | 2.0 MPa Non-Shock |
| Shell Test Pressure | 3.0 MPa Hydrostatic |
| Seat Test Pressure | 2.2 MPa Hydrostatic |
| Air Test Pressure | 0.8 MPa |
| Working Temperature | -20°C to 120°C |
| Maintenance Design | Removable Screen |
| Optional Material | Lead-Free Bronze Available |
