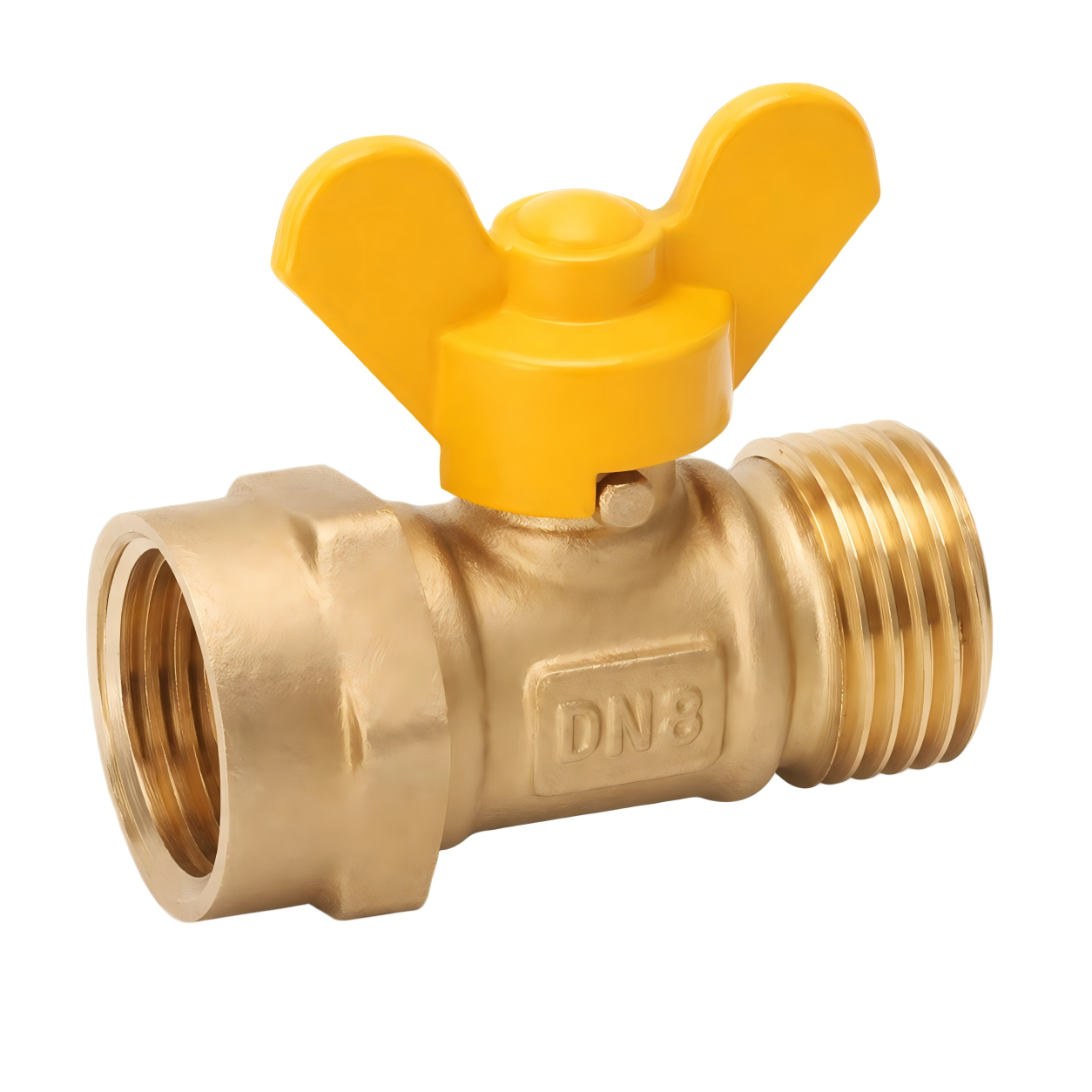

This butterfly handle gas ball valve uses a
Female × Male threaded connection configuration with a compact
yellow butterfly handle.
According to the current product catalog, the confirmed size
for this model is 1/2″.
The exact thread standard, pressure rating, working temperature
and detailed testing requirements are not stated in the available
catalog information and should therefore be confirmed before quotation.
Key Features
Brass Gas Ball Valve
Female × Male Threads
Yellow Butterfly Handle
1/2″ Size
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Brass Gas Ball Valve |
| Body Material | Brass |
| Connection | Female × Male Threaded Ends |
| Handle Type | Yellow Butterfly Handle |
| Operation | Manual Quarter-Turn |
| Confirmed Size | 1/2″ |
| Exact Thread Standard | To Be Confirmed |
| Pressure Rating | To Be Confirmed |
| Working Temperature | To Be Confirmed |
Technical Buyer Notes
Female × Male Threaded Connection
This valve combines one internal female threaded connection
with one external male threaded connection.
This configuration should be distinguished from Female × Female
and Male × Male gas ball valves when matching an existing piping
layout or replacement product.
Buyer Tip:
“1/2-inch gas ball valve” is not a complete product specification.
Buyers should also confirm the
Female × Male connection arrangement
and the required thread standard.
Why Does the Butterfly Handle Matter?
The most visible difference between this model and a conventional
long-lever gas ball valve is its compact butterfly-style handle.
When replacing an existing valve, buyers should confirm the required
handle configuration as well as the connection arrangement rather than
selecting only by nominal size.
Confirm the Exact Thread Standard
The current catalog confirms Female × Male threaded ends,
but it does not identify the exact pipe-thread standard.
BSPP, BSPT, NPT or another thread standard should therefore
not be assumed until confirmed for the order.
For more information about common pipe-thread systems, see our
BSP vs NPT thread guide
.
Pressure Rating Should Be Confirmed Separately
A pressure rating is not provided for this specific model
in the current catalog information.
Buyers should therefore specify the required working pressure
during quotation rather than assuming a rating from the valve size,
handle color or external appearance.
What Should Buyers Specify When Requesting a Quote?
Because several gas ball valve models may share the same nominal size,
the RFQ should identify the connection and handle requirements clearly.
- Required size: 1/2″
- Female × Male connection requirement
- Yellow butterfly handle requirement
- Required thread standard
- Required working pressure
- Working temperature if relevant
- Order quantity
- Reference drawing or sample if available
- Logo, marking or packaging requirements if applicable
OEM & Purchasing Support
SUNRICH FLOW works with specialized manufacturing partners in
Yuhuan, Zhejiang, China, coordinating product specifications,
production, quality control, OEM requirements, packaging and shipment
for international buyers.
For this gas ball valve, customization feasibility should be evaluated
according to the required connection, thread, handle, working conditions
and order specification.
OEM Note:
Thread, handle, marking and packaging requirements can be evaluated
according to the final product specification.
Quality & Order Checks
Before bulk production, the confirmed purchasing specification
should be used to check the valve connection and operating requirements.
- Correct 1/2″ nominal size
- Correct Female × Male connection arrangement
- Required thread standard
- Yellow butterfly handle configuration
- Critical connection dimensions
- Handle operation
- Required working pressure
- Required leakage or pressure testing conditions
- Marking and packaging requirements
Quality Note:
No specific pressure rating, shell-test pressure,
seat-test pressure or testing standard is confirmed
in the current catalog information for this model.
These requirements should be agreed before production.
Compare Other Brass Ball Valve Configurations
If you are comparing this compact butterfly-handle model
with other threaded brass ball valves, browse the
brass ball valve range
for additional connection, handle and pressure options.
Frequently Asked Questions
What size is available for this gas ball valve?
The current catalog confirms a 1/2″ size for this model.
What connection does this valve use?
This model uses Female × Male threaded ends,
with one internal female thread and one external male thread.
What type of handle does this valve use?
The valve uses a compact yellow butterfly-style handle.
What thread standard does this valve use?
The exact thread standard is not confirmed in the current catalog.
It should be specified before quotation.
What is the pressure rating?
A pressure rating is not confirmed in the current catalog information
for this specific model.
How is this different from the 1001 gas pipe valve?
Both use Female × Male connections, but this model uses a compact
butterfly-style handle and is currently confirmed in a 1/2″ size.
Product specifications should still be compared before selecting a replacement.
What information should I provide for a quotation?
Please provide the required size, Female × Male connection,
thread standard, pressure requirement, quantity and any applicable
marking or packaging requirements.
Need a Butterfly Handle Brass Gas Ball Valve?
Share your required connection, thread standard,
pressure requirement and quantity.
We can evaluate a suitable specification for your order.
