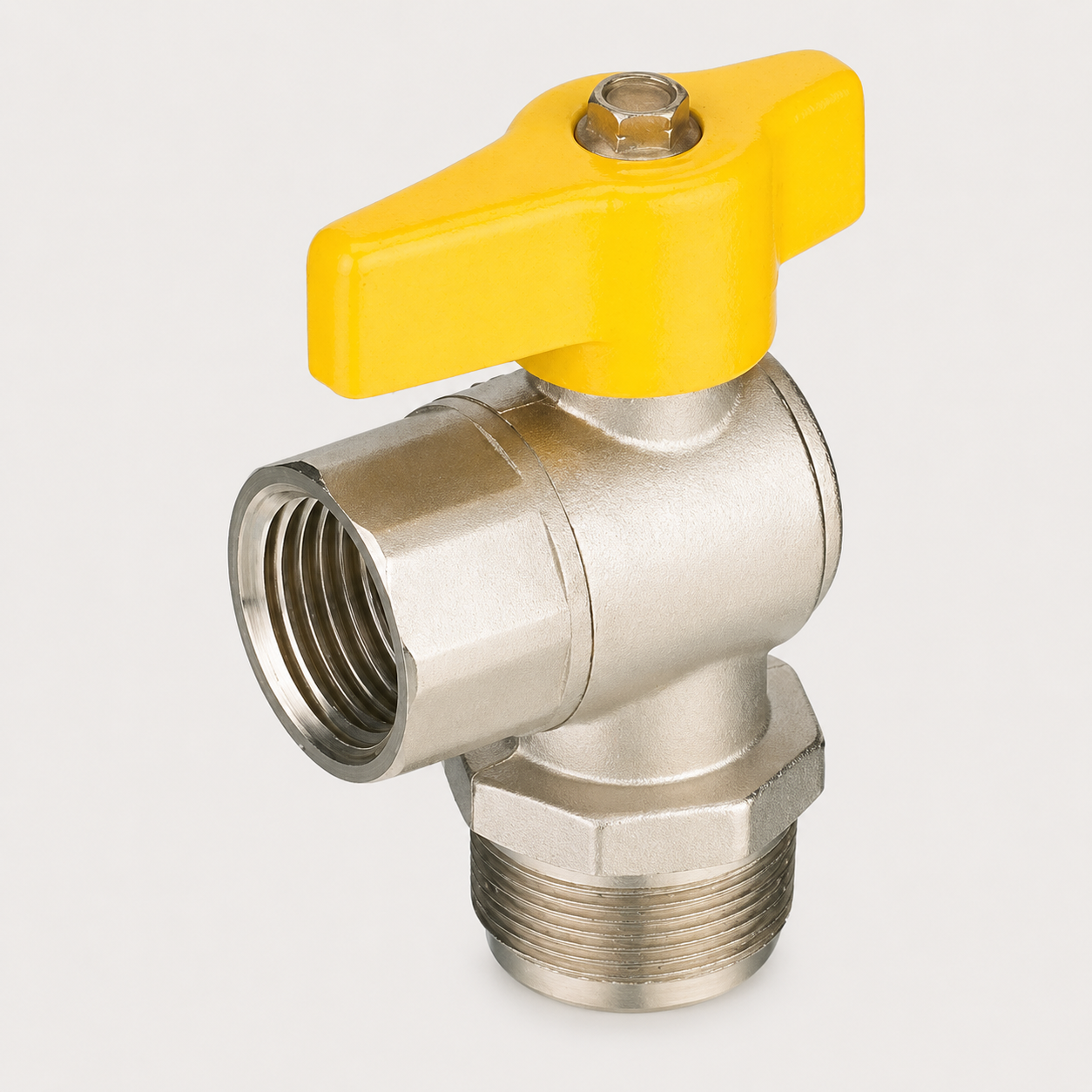

This brass gas angle ball valve combines a Female NPT threaded connection with a flare connection in a compact 90-degree body design.
It is designed for gas shut-off and appliance connection applications where installation space or piping direction requires an angle configuration.
The valve features a 2-piece body construction, standard port design and yellow butterfly handle.
The current product specification covers connection sizes from 3/8″ to 3/4″, with a pressure rating of 1/2 PSI and a working temperature range of 32°F to 125°F (0°C to 52°C).
For importers, plumbing distributors, gas equipment distributors and private-label customers, OEM marking and customized packaging can be discussed according to project requirements.
1. Key Features
Brass Valve Body
Female NPT × Flare
90° Angle Design
2-Piece Structure
Standard Port
1/2 PSI Rated
3/8″–3/4″ Sizes
OEM Available
2. Technical Specifications
| Product Type | Brass Gas Angle Ball Valve |
|---|---|
| Body Material | Brass |
| Body Construction | 2-Piece |
| Port Type | Standard Port |
| Connection Type | Female NPT × Flare |
| Configuration | 90° Angle |
| Size Range | 3/8″–3/4″ |
| Pressure Rating | 1/2 PSI |
| Working Temperature | 32°F to 125°F / 0°C to 52°C |
| Handle Type | Yellow Butterfly Handle |
| Typical Function | Gas Shut-Off / Appliance Connection |
| OEM Service | Logo, Marking and Packaging Available |
The specification currently confirms a general size range of 3/8″–3/4″.
Exact Female NPT × Flare connection combinations should be confirmed before quotation or production.
3. Female NPT × Flare Connection
One of the main characteristics of this valve is its Female NPT × Flare connection.
The Female NPT side is designed for connection to a compatible threaded piping system, while the flare side provides a connection point for a compatible flare fitting or gas line.
Because the NPT and flare ends can use different nominal connection sizes, buyers should specify the exact connection combination required for their application rather than ordering only by the general valve size.
4. Why Use an Angle Gas Valve?
Unlike a straight gas ball valve, this model changes the connection direction by approximately 90 degrees.
The angle configuration can be useful when:
- The appliance connection is perpendicular to the supply line.
- Installation space behind or beside the appliance is limited.
- A compact shut-off point is required near the gas connection.
- The piping layout requires a change in connection direction.
The angle body combines the shut-off function and direction change within one compact valve configuration.
5. Typical Applications
This type of brass gas angle valve is commonly used as a compact shut-off valve for gas piping and appliance connection systems.
Gas Appliance Connection
Gas Line Shut-Off
Compact Installations
Residential Gas Piping
Confirm these requirements before ordering.
6. 1/2 PSI Pressure Rating
The current product specification lists a pressure rating of 1/2 PSI.
Because gas valve pressure and certification requirements vary by market and application, the required pressure rating should be confirmed during product selection.
If your project requires another pressure rating or a specific gas-valve standard, send us the target specification so that the correct product configuration can be evaluated.
7. Working Temperature
The specified working temperature range for this model is:
32°F to 125°F / 0°C to 52°C
The installation environment and service conditions should remain within the specified limits unless another product configuration has been technically confirmed.
8. Yellow Butterfly Handle
The valve is supplied with a compact yellow butterfly-style operating handle.
Its compact shape is suited to angle-valve installations where available operating space may be limited.
Depending on OEM requirements, handle marking or branding can be discussed before production.
9. Size and Connection Selection
The current specification lists the following general size range:
| Available Size Range | Connection |
|---|---|
| 3/8″ | Female NPT × Flare |
| 1/2″ | Female NPT × Flare |
| 3/4″ | Female NPT × Flare |
The table indicates the general product size range only.
Exact NPT and flare connection combinations should be confirmed according to the required application.
10. OEM and Private Label Options
SUNRICH FLOW supports OEM and private-label brass valve projects for importers, distributors and wholesalers.
Depending on project requirements and order quantity, customization can include:
- Valve body marking
- Handle marking
- Brand logo
- Product labels
- Neutral packaging
- Customized color boxes
- Export cartons
- Barcode labels
If you require a specific pressure rating, connection combination, certification or material specification, provide these requirements during the quotation stage.
Looking for a Female NPT × Flare Gas Valve?
Send us the required NPT size, flare size, quantity, pressure requirement and destination market.
We can evaluate the specification before preparing your quotation.
11. Quality Inspection
For gas valve orders, inspection requirements should be confirmed according to the agreed product specification and customer requirements.
Typical inspection items can include:
- Valve appearance
- Thread quality
- Connection dimensions
- Flare-end dimensions
- Handle operation
- Ball opening and closing operation
- Sealing performance
- Packaging condition
12. Frequently Asked Questions
What is a Female NPT × Flare gas valve?
The exact NPT and flare dimensions should be confirmed before ordering.
What is the pressure rating of this gas valve?
What sizes are available?
Exact Female NPT × Flare connection combinations should be confirmed before quotation.
What is the working temperature range?
Why use an angle gas valve instead of a straight valve?
This can be useful when installation space is limited or when the appliance connection and gas supply line are positioned in different directions.
Is this valve suitable for natural gas or LPG?
Please provide the intended medium, pressure and destination-market requirements before ordering so that suitability can be confirmed.
Does this gas valve have CSA, UL or other certifications?
If CSA, UL or another gas-valve approval is mandatory for your project, provide the required standard before quotation.
Can the valve be customized with my brand?
What information should I provide for quotation?
A sample, photo or technical specification is also useful for replacement or OEM projects.
Need a Brass Gas Angle Ball Valve?
Tell us your required Female NPT × Flare connection, size, quantity, pressure requirement and destination market.
For OEM or replacement projects, you can also send us your existing valve sample, product photo or technical drawing.
