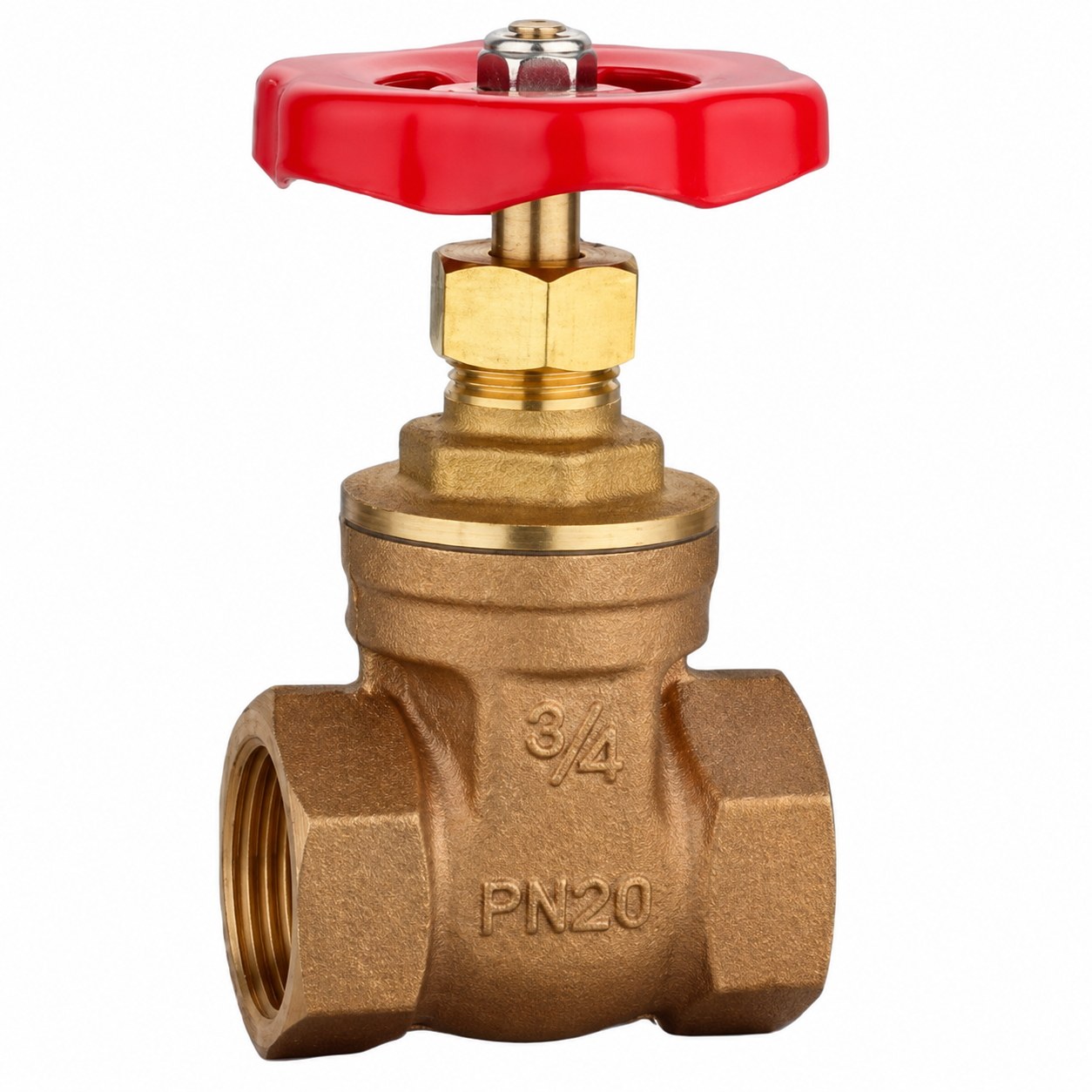

Non-rising stem bronze gate valve with metal-to-metal sealing and BSP or NPT threaded connections. Available in sizes from 1/2″ to 2″, with a working pressure rating of 2.0 MPa and optional lead-free bronze material.
The Non-Rising Stem Bronze Gate Valve is designed for reliable flow isolation in water supply, plumbing, HVAC, industrial and general piping systems.
Manufactured with a durable bronze body, bonnet and gate, the valve provides good corrosion resistance and long service life. Its non-rising stem structure reduces the installation height required, making it suitable for piping systems with limited operating space.
The metal-to-metal sealing structure provides stable shut-off performance, while the handwheel design allows smooth opening and closing. The valve is available with BSP or NPT threaded connections in sizes from 1/2″ to 2″.
With a working pressure rating of 2.0 MPa and a working temperature range from -20°C to 120°C, this bronze gate valve is suitable for a wide range of commercial and industrial applications. Lead-free bronze materials are available upon request.
Technical Specifications

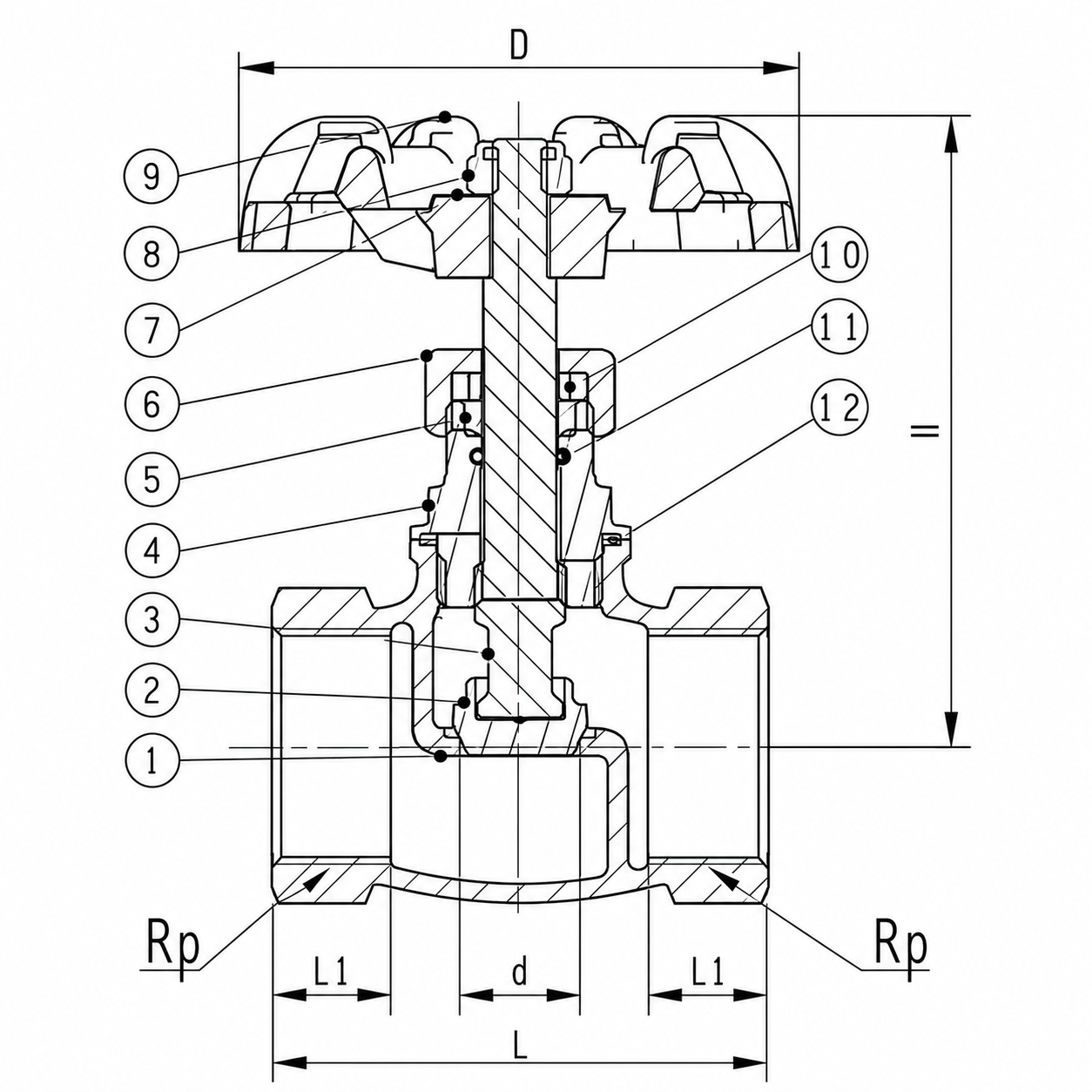

| Item | Specification |
|---|---|
| Product Type | Bronze Gate Valve |
| Stem Design | Non-Rising Stem |
| Sealing Type | Metal-to-Metal Seal |
| Body Material | Bronze |
| Bonnet Material | Bronze |
| Gate Material | Bronze |
| Stem Material | Bronze |
| Stem Nut Material | Brass |
| Gland Nut Material | Brass |
| Packing Material | PTFE |
| O-Ring Material | EPDM |
| Handle Wheel Material | HT200 Cast Iron |
| Handle Nut Material | 304 Stainless Steel |
| Nameplate Material | Aluminum |
| Connection Type | BSP or NPT Thread |
| Size Range | 1/2″–2″ |
| Working Pressure | 2.0 MPa, Non-Shock |
| Shell Test Pressure | 3.0 MPa Hydrostatic |
| Seat Test Pressure | 2.2 MPa Hydrostatic / 8 Bar Air |
| Working Temperature | -20°C to 120°C |
| Optional Material | Lead-Free Bronze Available |
