This PN16 brass horizontal check valve features an HPb59-1 brass body, Female × Female threaded connections and a disc-type internal closing structure for one-way flow control.
The confirmed size range is 1/2″–2″, and the valve body includes a visible flow-direction arrow to indicate the intended installation direction.
Thread standard can be customized according to the purchasing requirement. Working medium, operating temperature, testing standard and product standard should be confirmed before quotation.
Key Features
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Horizontal Check Valve |
| Body Material | HPb59-1 Brass |
| Pressure Class | PN16 |
| Size Range | 1/2″–2″ |
| Connection | Female × Female Threaded |
| Thread Standard | Customizable / To Be Specified |
| Internal Structure | Disc |
| Flow Direction | Arrow Marked on Valve Body |
| Working Medium | To Be Confirmed |
| Working Temperature | To Be Confirmed |
| Testing Standard | To Be Confirmed |
| Product Standard | To Be Confirmed |
| OEM | Supported |
| Certification | Not Specified |
How Does a Brass Horizontal Check Valve Work?
A horizontal check valve is designed to allow flow in the intended direction while restricting reverse flow when system conditions change.
This model uses a disc-type internal closing element. The exact operating characteristics depend on the final product specification and working conditions.
Installation Note: follow the flow-direction arrow marked on the valve body when installing the valve.
Technical Buyer Notes
Confirm the Thread Standard
The valve uses Female × Female threaded connections. The required pipe-thread standard can be specified according to the purchasing requirement.
Buyers should clearly state whether BSPP, BSPT, NPT or another thread standard is required before quotation.
For more information about common thread systems, see our BSP vs NPT thread guide.
Confirmed Size Range: 1/2″–2″

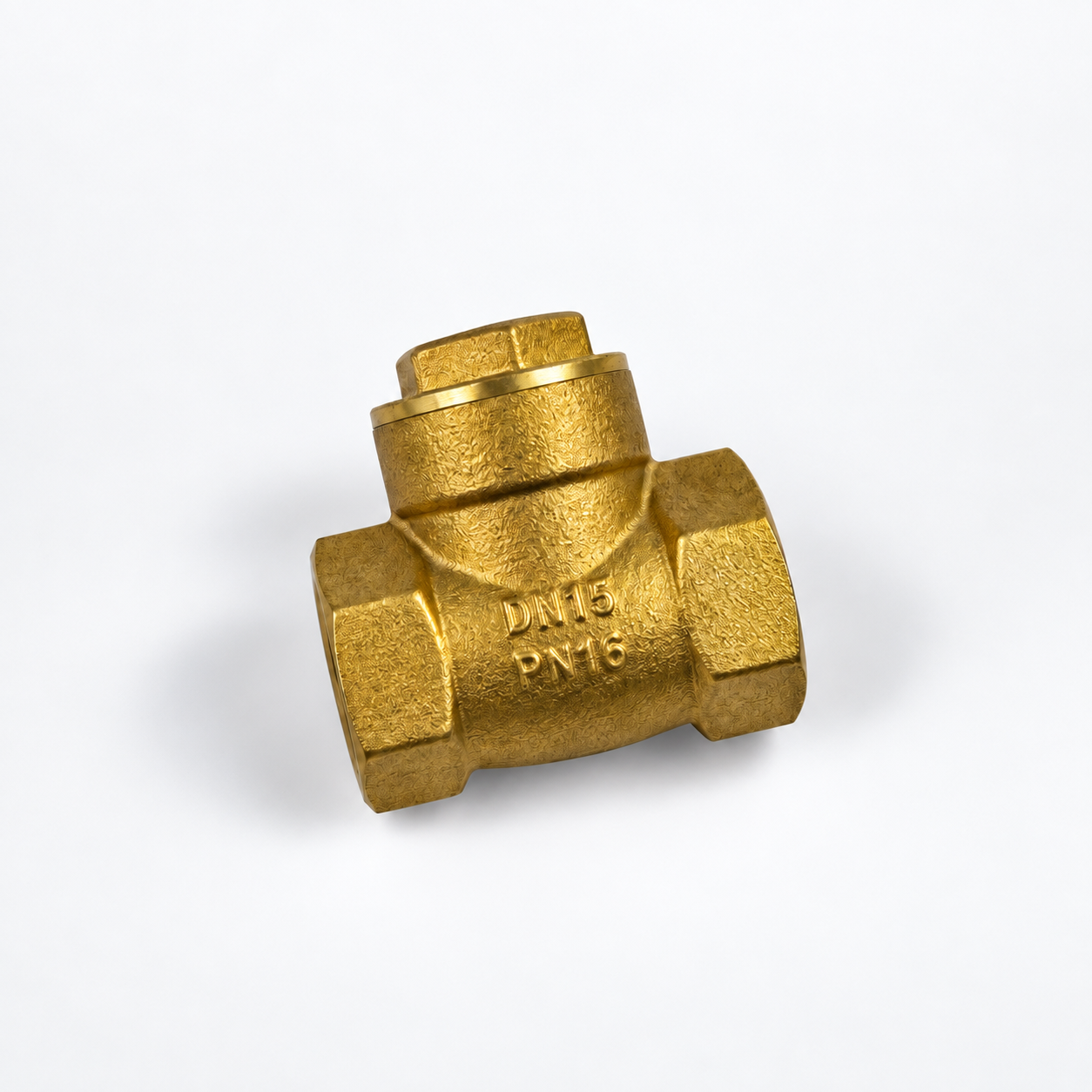

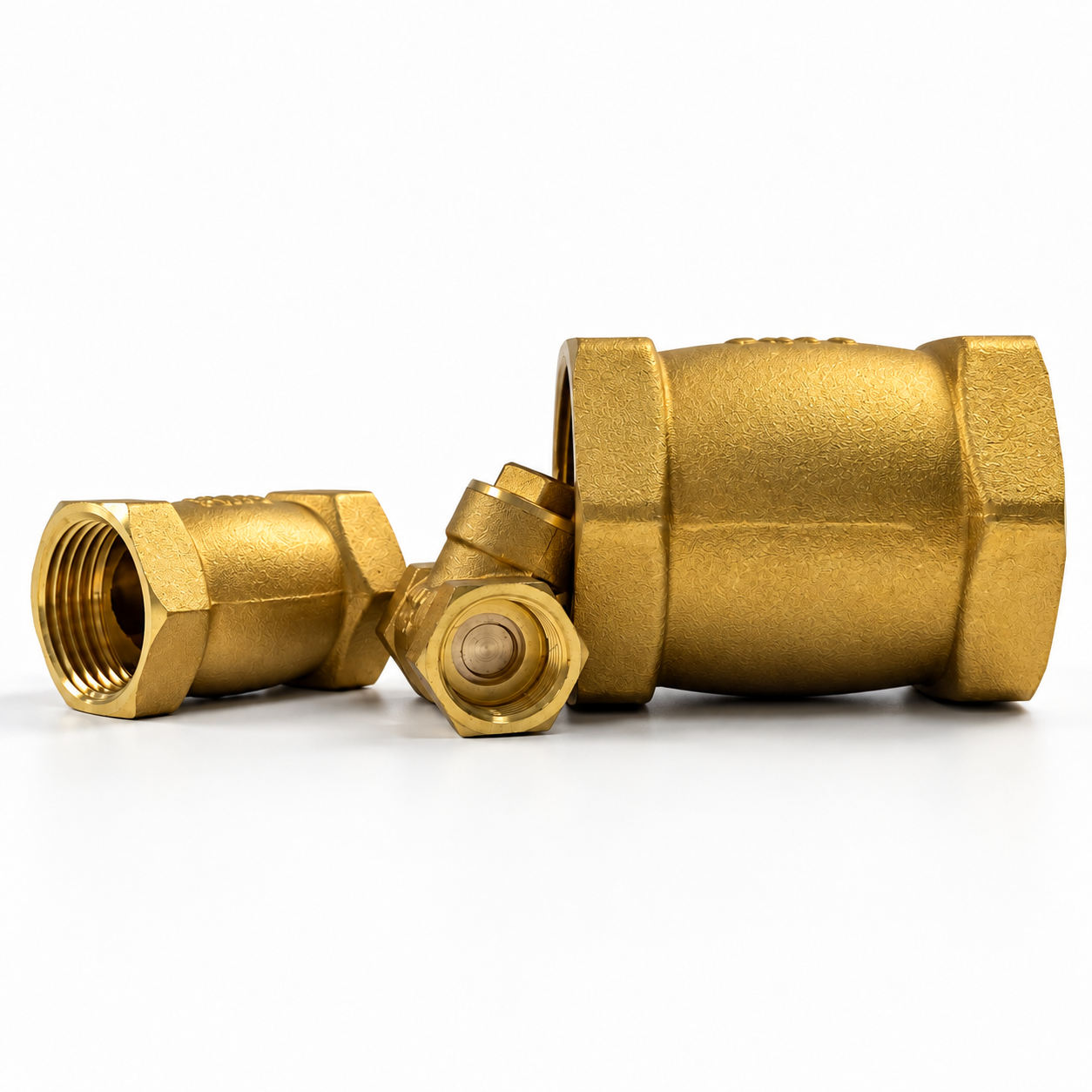

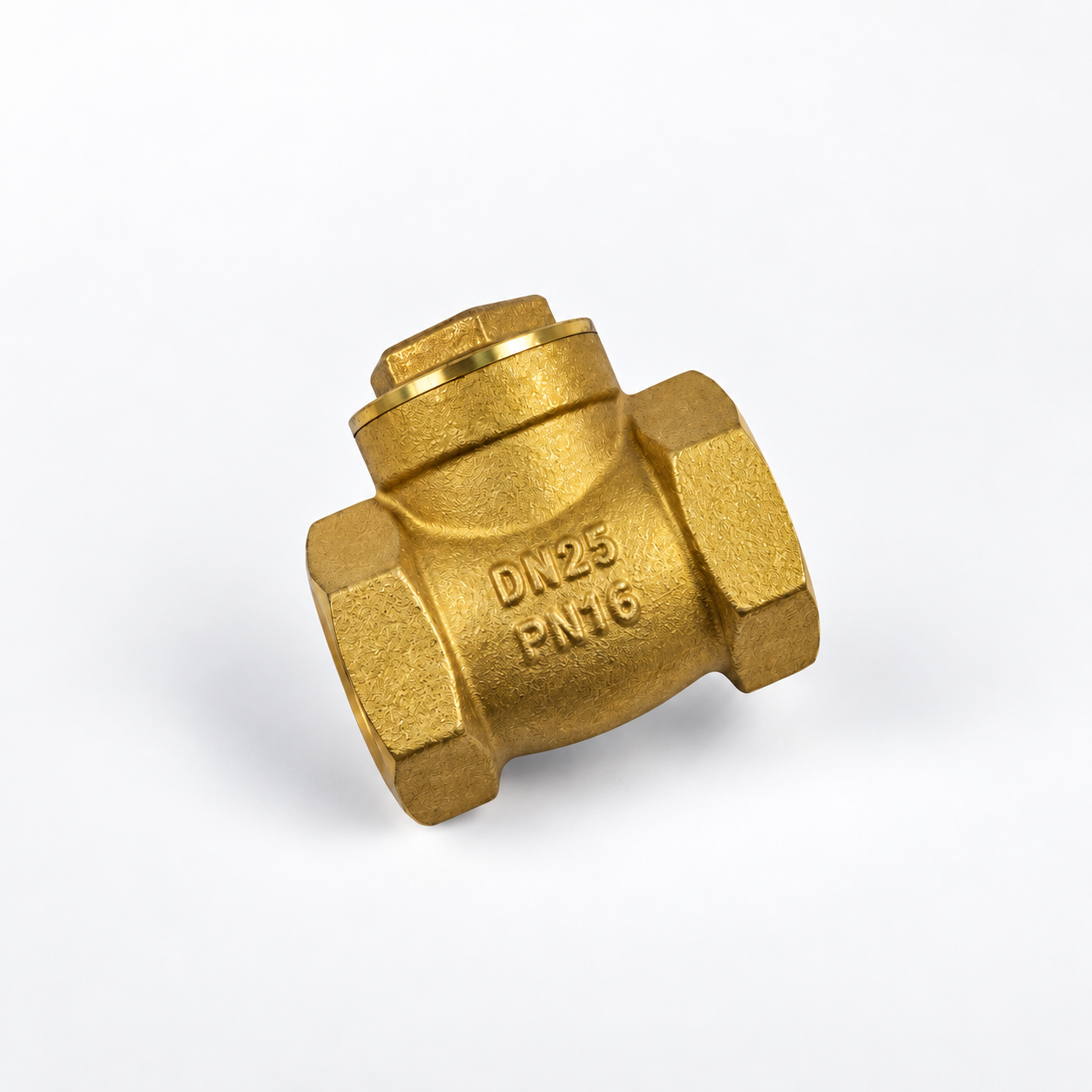

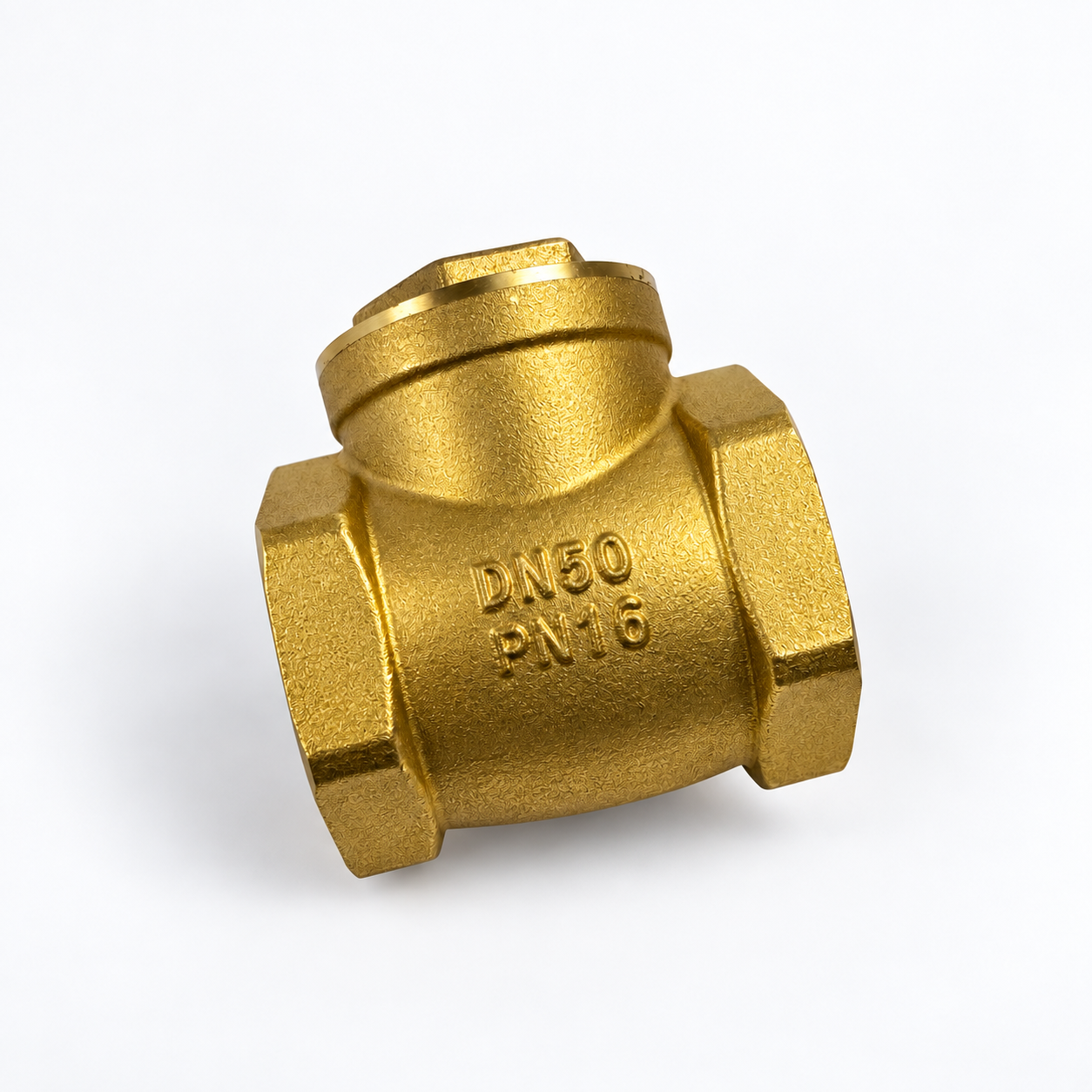

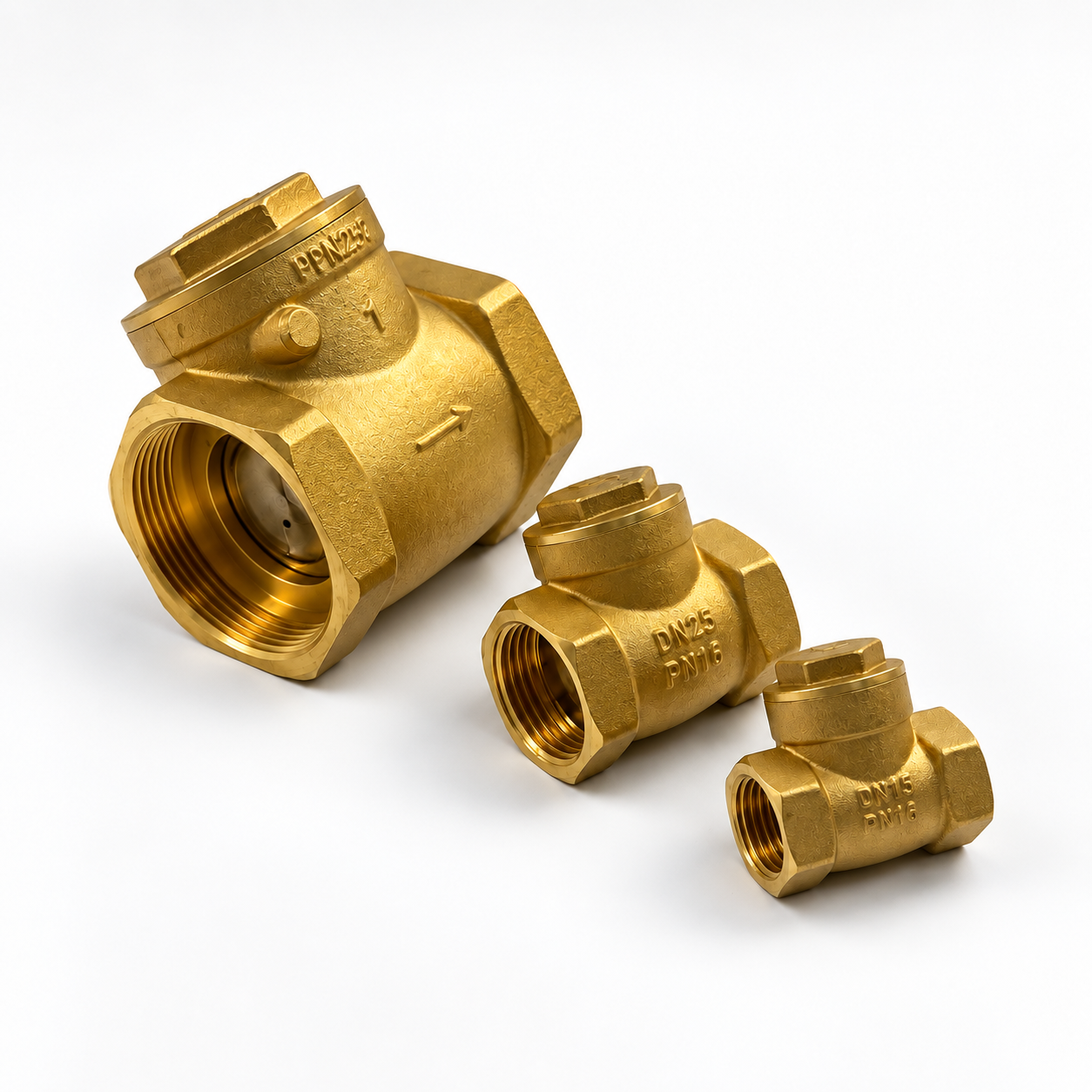

The confirmed product size range is 1/2″–2″. The current product images show examples including DN15, DN25 and DN50.
When requesting a quotation, provide the required quantity for each size rather than only the total order quantity.
PN16 Pressure Class
This product is confirmed as PN16. However, pressure class alone does not define every operating condition.
The actual working medium and operating temperature should also be confirmed before final product selection.
Disc-Type Internal Structure
The currently confirmed internal closing component is a disc.
Detailed disc material, sealing material and other internal component specifications are not currently confirmed and should be checked if they are important to the application.
Application Considerations
This brass horizontal check valve is intended for piping systems requiring one-way flow and reverse-flow prevention.
Final application suitability should be evaluated according to working medium, temperature, pressure, thread standard and installation conditions.
What Should Buyers Specify When Requesting a Quote?
For this PN16 brass horizontal check valve, provide as much of the following information as possible:
- Required size from 1/2″–2″
- Quantity for each size
- Required thread standard
- PN16 requirement
- Working medium
- Working temperature
- Internal component requirements, if applicable
- Testing requirements
- Logo or valve-body marking requirements
- Packaging requirements
- Reference drawing, photo or sample if available
Example RFQ
Product: PN16 Brass Horizontal Check Valve
Material: HPb59-1 Brass
Size: Buyer to specify within 1/2″–2″
Connection: Female × Female
Thread Standard: Buyer to specify
Pressure Class: PN16
Working Medium: Buyer to specify
Working Temperature: Buyer to specify
Quantity: Buyer to specify
OEM & Purchasing Support
SUNRICH FLOW works with specialized manufacturing partners in Yuhuan, Zhejiang, China, coordinating product specifications, production, quality control, OEM requirements, packaging and shipment for international buyers.
Thread standard, product marking, packaging and other purchasing requirements can be evaluated according to the final specification.
OEM Note: OEM feasibility depends on the required product specification and should be evaluated before production.
Quality & Order Confirmation
Before bulk production, the confirmed purchasing specification should be used as the basis for product inspection and order confirmation.
Depending on the final order requirements, relevant checks may include:
- Correct nominal size
- HPb59-1 brass requirement
- PN16 body marking
- Female × Female threaded connections
- Required thread dimensions and standard
- Correct flow-direction marking
- Disc configuration
- Critical overall dimensions
- Functional check-valve operation
- Required leakage or pressure testing
- Product marking requirements
- Packaging requirements
Quality Note: no specific test pressure, test duration, leakage acceptance criteria or testing standard is currently confirmed. These requirements should be agreed before production if they are required for the order.
Frequently Asked Questions
What type of valve is this?
This product is a brass horizontal check valve designed for one-way flow and reverse-flow prevention.
What pressure class is this valve?
The confirmed pressure class is PN16.
What sizes are available?
The confirmed size range is 1/2″–2″.
What material is used for the valve body?
The confirmed valve body material is HPb59-1 brass.
Is the thread BSP or NPT?
The thread standard can be specified according to the purchasing requirement. Please state the required BSPP, BSPT, NPT or other thread standard in the RFQ.
What is the internal structure?
The currently confirmed internal closing component is a disc.
What media can this valve be used with?
The working medium is not currently confirmed. Buyers should provide the intended medium before final product selection.
What is the working temperature?
The working-temperature range is not currently confirmed and should be checked according to the final application.
Does this valve support OEM customization?
Yes. Thread standard, marking, packaging and other OEM requirements can be evaluated according to the final specification.
What information should I provide for a quotation?
Please provide size, quantity, thread standard, working medium, working temperature and any applicable OEM, testing or packaging requirements.
Need a PN16 Brass Horizontal Check Valve?
Share your required size, thread standard, working conditions and quantity. We can evaluate the required specification before quotation.
