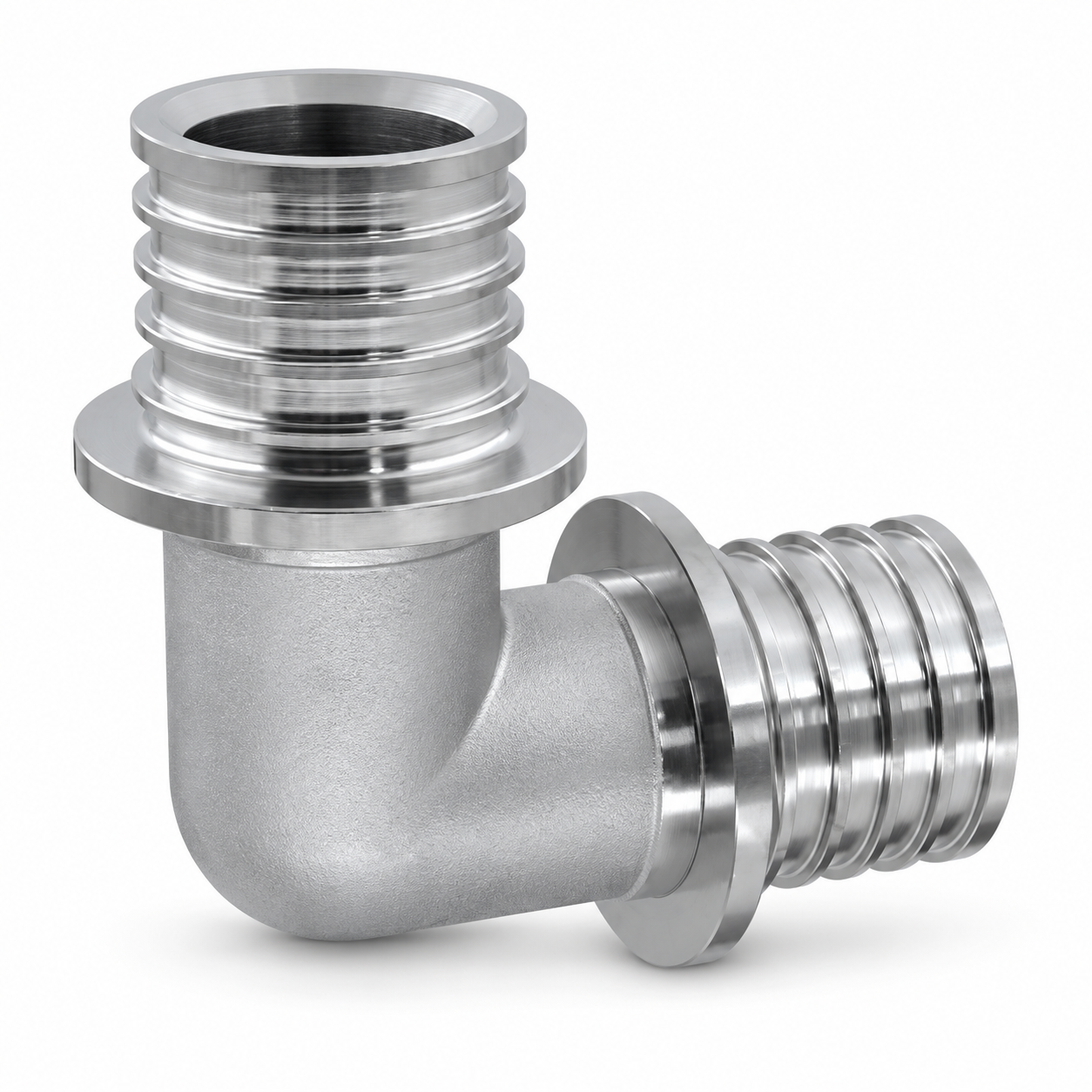

Stainless Steel Equal 90° Elbow Slide Fitting
Stainless steel equal 90° elbow slide fitting for changing the direction of a compatible piping system while maintaining the same nominal size on both ends. Available in L16×16, L20×20, L25×25, L32×32, L40×40 and L50×50. Stainless steel grade, pipe compatibility, working pressure and temperature should be confirmed according to the required system.
The stainless steel equal 90° elbow slide fitting
is designed to change the direction of a compatible piping system
while maintaining the same nominal connection size on both ends.
Manufactured from stainless steel, the fitting uses a compact
90-degree elbow configuration and is available from
L16×16 to L50×50.
The exact stainless steel grade, compatible pipe material,
connection system, working pressure and temperature should be
confirmed according to the final project specification.
Key Product Features
Equal-size stainless steel elbow fitting for compatible
90-degree piping direction changes.
Stainless Steel Body
Manufactured from stainless steel.
The exact material grade should be confirmed
according to project requirements.
90° Elbow Design
Designed to change the direction of the piping line
by approximately 90 degrees.
Equal Diameter
Both connection ends use the same nominal size
within each product specification.
Six Size Options
Available in L16×16, L20×20, L25×25,
L32×32, L40×40 and L50×50.
Compact Configuration
Compact elbow geometry for direction changes
within compatible piping installations.
OEM Supply
Product marking, packaging and project-specific requirements
can be evaluated according to the order.
Technical Specifications
Confirmed product information based on the current specification.
| Product Type | Equal 90° Elbow Slide Fitting |
|---|---|
| Material | Stainless Steel |
| Configuration | 90° Equal Elbow |
| Available Specifications |
L16×16, L20×20, L25×25, L32×32, L40×40, L50×50 |
| Stainless Steel Grade | To be confirmed |
| Compatible Pipe Type | To be confirmed according to the piping system |
| Connection System | To be confirmed according to the required slide-fitting system |
| Working Pressure | To be confirmed |
| Working Temperature | To be confirmed |
| OEM / Private Label | Available for evaluation according to project requirements |
Buyer Note:
L16, L20, L25, L32, L40 and L50 should be matched with
the actual pipe dimensions and the required connection system
before ordering.
Available Sizes
| Specification | Configuration |
|---|---|
| L16×16 | 90° Equal Elbow |
| L20×20 | 90° Equal Elbow |
| L25×25 | 90° Equal Elbow |
| L32×32 | 90° Equal Elbow |
| L40×40 | 90° Equal Elbow |
| L50×50 | 90° Equal Elbow |
Equal 90° Elbow Configuration
An equal elbow uses the same nominal connection size
at both ends of the fitting.
For example, the L20×20 version uses
the same nominal specification on both connection ends.
The 90° geometry allows the pipeline to change direction
without changing the nominal pipe size at the fitting.
What Should Buyers Confirm Before Ordering?
- Required size: L16, L20, L25, L32, L40 or L50
- Actual pipe outside diameter
- Pipe wall thickness
- Compatible pipe material
- Required slide-fitting connection system
- Stainless steel grade
- Required working pressure
- Minimum and maximum operating temperature
- Working medium
- Tool or sleeve compatibility, when applicable
- Required quantity by size
- Product marking requirements
- OEM or private-label packaging requirements
OEM and Project Supply
SUNRICH FLOW works with manufacturing partners to coordinate
specifications, production requirements, quality follow-up,
marking and packaging for international buyers.
Drawings, pipe specifications or reference samples can help
confirm dimensional and connection compatibility before production.
Size Confirmation
Confirm the fitting specification and corresponding
pipe dimensions before ordering.
Material Requirement
Specify the required stainless steel grade
where material composition is important.
Product Marking
Logo and identification requirements can be evaluated
according to the project.
Packaging
Neutral or private-label packaging can be evaluated
according to order requirements.
Frequently Asked Questions
What is a stainless steel equal elbow fitting?
It is a pipe fitting designed to change direction
while maintaining the same nominal size on both ends.
What angle does this elbow use?
The product shown uses a 90-degree elbow configuration.
What sizes are available?
Available specifications are L16×16, L20×20,
L25×25, L32×32, L40×40 and L50×50.
What stainless steel grade is used?
The exact stainless steel grade is not specified
in the current information and should be confirmed
before ordering.
What is the working pressure?
A fixed working-pressure rating is not currently specified
and should be confirmed according to the final system.
Can this fitting be supplied for OEM projects?
Product marking, packaging and other project requirements
can be evaluated according to quantity and specification.
Looking for Stainless Steel Equal Elbow Fittings?
Send us the required size, pipe specification,
connection-system requirements, quantity and material requirements.
SUNRICH FLOW can review the configuration and prepare
a quotation for your project.
