Stainless Steel Threaded Gate Valve with Handwheel – 1.6 MPa
Stainless steel threaded gate valve with investment-cast CF8/CF8M body and bonnet, handwheel operation and Female × Female threaded ends. Rated for 1.6 MPa working pressure and -20°C to 150°C operating temperature, with NPT, BSP, BSPT, DIN 259/2999, Rc and Rp thread options. Available from 1/2″ to 2-1/2″ for compatible water, oil and gas applications.

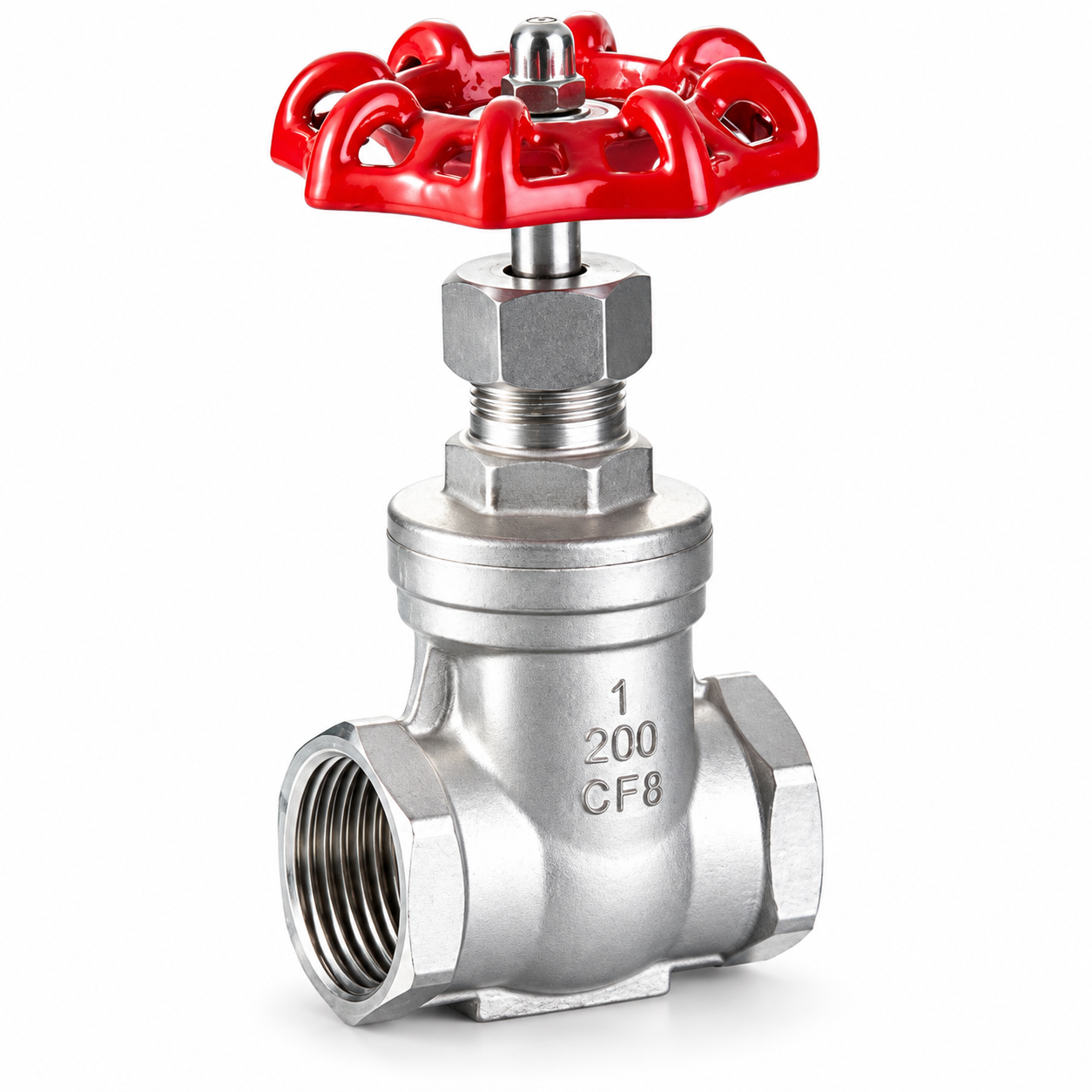

The stainless steel threaded gate valve
is designed for manual isolation of compatible piping systems
using Female × Female threaded connections.
The valve features an investment-cast stainless steel body
and bonnet in CF8 or CF8M, a red handwheel and
replaceable sealing components.
The current specification lists a working pressure of
1.6 MPa and an operating temperature range
of -20°C to 150°C.
Thread options include NPT, BSP, BSPT, DIN 259/2999,
Rc and Rp, with available sizes from
1/2″ to 2-1/2″.
Key Product Features
Threaded stainless steel gate valve for compatible
water, oil and gas pipeline isolation applications.
Investment-Cast Body
Stainless steel investment-cast body and bonnet
available in CF8 or CF8M.
1.6 MPa Working Pressure
Current specification lists a working pressure
of 1.6 MPa.
-20°C to 150°C
Wide listed working-temperature range for
compatible operating conditions.
Multiple Thread Standards
NPT, BSP, BSPT, DIN 259/2999, Rc and Rp
thread configurations are listed.
Handwheel Operation
Manual multi-turn handwheel operation for
opening and closing the gate.
Locking Option Available
A locking-device handle configuration can be
evaluated where required.
Technical Specifications
| Product Type | Threaded End Gate Valve |
|---|---|
| Body Material | CF8 / CF8M Stainless Steel |
| Bonnet Material | CF8 / CF8M Stainless Steel |
| Connection | Female × Female Threaded Ends |
| Thread Standards | NPT / BSP / BSPT / DIN 259/2999 / Rc / Rp |
| Working Pressure | 1.6 MPa |
| Working Temperature | -20°C to 150°C |
| Available Sizes | 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″ |
| Operation | Manual Handwheel |
| Body Manufacturing | Investment Casting |
| Working Media | Water, oil, gas and compatible media |
| Locking Device | Available as an option |
Application Note:
compatibility should be confirmed according to the actual
medium, pressure, temperature, thread requirement and any
applicable regulatory requirements.
Main Parts and Materials
| Item | Part | Material |
|---|---|---|
| 1 | Nut | 201 / 304 |
| 2 | Gasket | 304 |
| 3 | Handwheel | KTH300-08 |
| 4 | Tightening Bonnet | 201 / 304 |
| 5 | Gland | 304 |
| 6 | Stem Packing | PTFE / RPTFE |
| 7 | Bonnet | CF8 / CF8M |
| 8 | Gland | 304 / 316 |
| 9 | Sealing Ring | PTFE / RPTFE |
| 10 | Body | CF8 / CF8M |
| 11 | Stem | 304 / 316 |
| 12 | Disc | 304 / 316 |
Main Dimensions
Dimensions are in millimeters.
| Size | DN | d | L | H | ØE |
|---|---|---|---|---|---|
| 1/2″ | DN15 | 15 | 53 | 98 | 65 |
| 3/4″ | DN20 | 20 | 57 | 104 | 65 |
| 1″ | DN25 | 25 | 61 | 115 | 72 |
| 1-1/4″ | DN32 | 32 | 71 | 125 | 79 |
| 1-1/2″ | DN40 | 38 | 74 | 147 | 95 |
| 2″ | DN50 | 50 | 83 | 165 | 108 |
| 2-1/2″ | DN65 | 65 | 104 | 207 | 127 |
Thread Options
The current specification lists
NPT, BSP, BSPT, DIN 259/2999, Rc and Rp
thread options.
Thread standards are not automatically interchangeable,
even when the nominal inch size is the same.
Buyers should confirm the required standard,
thread form and mating component before production.
Typical Applications
Water Systems
Isolation of compatible water piping systems.
Oil Systems
Can be evaluated for compatible oil media
under the specified operating conditions.
Gas Systems
Gas is listed as an applicable medium in the product
specification; regulatory and material compatibility
must still be confirmed for the actual application.
Industrial Piping
Manual isolation in compatible industrial
fluid-control systems.
What Should Buyers Confirm Before Ordering?
- Required size from 1/2″ to 2-1/2″
- CF8 or CF8M body and bonnet
- NPT, BSP, BSPT, DIN 259/2999, Rc or Rp thread
- Actual working pressure
- Minimum and maximum temperature
- Working medium
- Stem and disc material requirement
- PTFE or RPTFE sealing requirement
- Locking-device requirement, if applicable
- Quantity by size
- Valve-body marking
- OEM and packaging requirements
OEM and Project Supply
SUNRICH FLOW works with manufacturing partners to coordinate
technical specifications, production requirements,
quality follow-up, marking and packaging for international buyers.
For replacement or OEM projects, drawings, specifications
or reference samples can help confirm thread,
dimensions and material requirements.
Frequently Asked Questions
What is the working pressure?
The current specification lists a working pressure
of 1.6 MPa.
What is the temperature range?
The listed operating-temperature range is
-20°C to 150°C.
What sizes are available?
Available sizes range from 1/2″ to 2-1/2″,
corresponding to DN15 through DN65.
What body materials are available?
The body and bonnet are listed in CF8 or CF8M.
Which thread standards are available?
NPT, BSP, BSPT, DIN 259/2999, Rc and Rp
are listed in the current specification.
Can the valve be used for gas?
Gas is listed as an applicable medium, but suitability
and any required certification must be confirmed
for the specific gas and destination market.
Looking for Stainless Steel Threaded Gate Valves?
Send us the required size, thread standard,
body material, working medium, quantity and operating conditions.
SUNRICH FLOW can review the specification and prepare
a quotation for your project.
