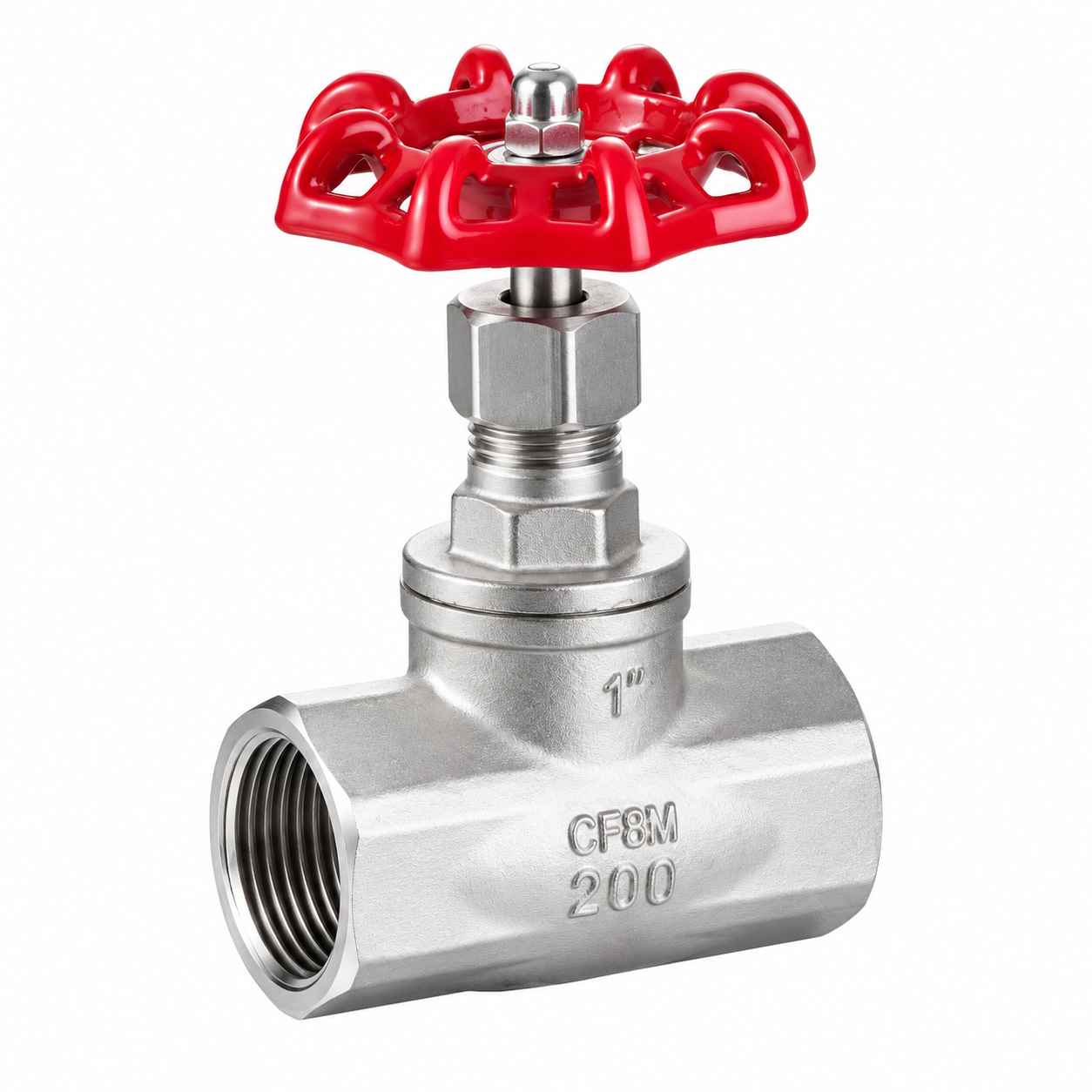

Stainless Steel Threaded Globe Valve with Handwheel – 1.6 MPa
Stainless steel threaded globe valve with investment-cast CF8/CF8M body and bonnet, Female × Female threaded ends and manual handwheel operation. Rated for 1.6 MPa working pressure with a listed temperature range of -20°C to 150°C. Available from 1/2″ to 3″ with NPT, BSP, BSPT, DIN 259/2999, Rc and Rp thread options for compatible water, oil and gas systems.
The stainless steel threaded globe valve
is designed for manual flow isolation and regulation in
compatible piping systems.
The valve uses an investment-cast CF8 or CF8M
stainless steel body and bonnet, Female × Female
threaded ends and a red handwheel for multi-turn operation.
The current specification lists a working pressure of
1.6 MPa and a standard operating temperature
range of -20°C to 150°C.
Available sizes range from 1/2″ to 3″,
with NPT, BSP, BSPT, DIN 259/2999, Rc and Rp
thread options.
Key Product Features
Stainless steel globe valve for compatible threaded
industrial and general fluid-control systems.
CF8 / CF8M Body
Investment-cast stainless steel body and bonnet
available in CF8 or CF8M.
1.6 MPa Working Pressure
Current specification lists a working pressure
of 1.6 MPa.
-20°C to 150°C
Listed standard operating-temperature range
for the current configuration.
Multiple Thread Options
NPT, BSP, BSPT, DIN 259/2999, Rc and Rp
configurations are listed.
Handwheel Operated
Manual multi-turn handwheel for controlled
opening and closing.
304 / 316 Internals
Stem and disc options are listed in
stainless steel 304 or 316.
Technical Specifications
| Product Type | Threaded Globe Valve |
|---|---|
| Body Material | CF8 / CF8M Stainless Steel |
| Bonnet Material | CF8 / CF8M Stainless Steel |
| Body Manufacturing | Investment Casting |
| Connection | Female × Female Threaded Ends |
| Thread Standards | NPT / BSP / BSPT / DIN 259/2999 / Rc / Rp |
| Working Pressure | 1.6 MPa |
| Standard Working Temperature | -20°C to 150°C |
| Available Sizes | 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″ |
| Operation | Manual Handwheel |
| Stem Material | 304 / 316 Stainless Steel |
| Disc Material | 304 / 316 Stainless Steel |
| Stem Packing | PTFE / RPTFE |
| Sealing Ring | PTFE / RPTFE |
| Working Media | Water, oil, gas and compatible media |
Temperature Note:
the source specification also shows “280°C” in parentheses,
but it does not define the material or sealing configuration
applicable to that temperature. For applications above 150°C,
confirm the complete valve configuration before quotation.
Main Parts and Materials
| Item | Part | Main Material |
|---|---|---|
| 1 | Nut | 201 / 304 |
| 2 | Gasket | 201 / 304 |
| 3 | Handwheel | KTH330-08 |
| 4 | Tightening Bonnet | 201 / 304 |
| 5 | Gland | 304 / 316 |
| 6 | Stem Packing | PTFE / RPTFE |
| 7 | Gasket | 304 / 316 |
| 8 | Stem | 304 / 316 |
| 9 | Sealing Ring | PTFE / RPTFE |
| 10 | Bonnet | CF8 / CF8M |
| 11 | Body | CF8 / CF8M |
| 12 | Disc | 304 / 316 |
Main Dimensions
Dimensions are in millimeters.
| Size | DN | d | L | H | ØE |
|---|---|---|---|---|---|
| 1/2″ | DN15 | 15 | 60 / 65 | 100 | 65 |
| 3/4″ | DN20 | 20 | 70 / 75 | 110 | 72 |
| 1″ | DN25 | 25 | 80 / 85 | 120 | 79 |
| 1-1/4″ | DN32 | 32 | 90 / 98 | 135 | 95 |
| 1-1/2″ | DN40 | 40 | 104 / 115 | 155 | 95 |
| 2″ | DN50 | 50 | 120 / 135 | 170 | 108 |
| 2-1/2″ | DN65 | 65 | 164 | 220 | 160 |
| 3″ | DN80 | 80 | 189 | To be confirmed | 160 |
Dimension Note:
the source table provides two L values for sizes
1/2″ through 2″ without defining the corresponding
configuration. Confirm the required body length
before production.
Globe Valve Flow Control
Unlike a gate valve, a globe valve uses a disc that moves
toward or away from the valve seat to control the flow path.
This design allows the valve to be used for both isolation
and flow-regulation duties in compatible systems.
For applications requiring continuous throttling,
confirm the actual flow conditions, pressure differential,
medium and seat configuration before selection.
Thread Options
Available thread standards listed in the current specification include
NPT, BSP, BSPT, DIN 259/2999, Rc and Rp.
These thread forms should not be considered automatically
interchangeable even when the nominal inch size is the same.
Confirm the required thread standard and mating component
before production.
Typical Applications
Water Systems
Manual isolation and regulation in compatible water systems.
Oil Systems
Can be evaluated for compatible oil media
under the specified operating conditions.
Gas Systems
Gas is listed as an applicable medium.
Compatibility and regulatory requirements should be
confirmed for the specific gas application.
Industrial Piping
Flow isolation or regulation in compatible
industrial fluid-control systems.
What Should Buyers Confirm Before Ordering?
- Required size from 1/2″ to 3″
- CF8 or CF8M body and bonnet
- NPT, BSP, BSPT, DIN 259/2999, Rc or Rp thread
- Required body length for sizes with two listed L values
- Actual working pressure
- Minimum and maximum operating temperature
- Working medium
- 304 or 316 stem and disc requirement
- PTFE or RPTFE packing and sealing requirement
- Quantity by size
- Valve-body marking
- OEM and packaging requirements
OEM and Project Supply
SUNRICH FLOW works with manufacturing partners to coordinate
technical specifications, production requirements,
quality follow-up, marking and packaging for international buyers.
Drawings, technical specifications or reference samples
can help confirm dimensions, thread standards and materials
for replacement and OEM projects.
Frequently Asked Questions
Is this a gate valve or a globe valve?
This product uses a globe-valve disc and seat configuration
and is classified as a threaded globe valve.
What is the working pressure?
The current specification lists 1.6 MPa.
What is the standard operating temperature?
The listed standard range is -20°C to 150°C.
Higher-temperature configurations should be confirmed separately.
What sizes are available?
Sizes range from 1/2″ to 3″,
corresponding to DN15 through DN80.
What materials are used for the body?
The body and bonnet are listed in CF8 or CF8M.
Which thread standards are available?
NPT, BSP, BSPT, DIN 259/2999, Rc and Rp
are listed in the specification.
Can this valve be used for gas?
Gas is listed as an applicable medium, but compatibility
and any required certification should be confirmed
for the actual gas and destination market.
Looking for Stainless Steel Threaded Globe Valves?
Send us the required size, thread standard,
CF8 or CF8M material, working medium, quantity
and operating conditions for quotation.
