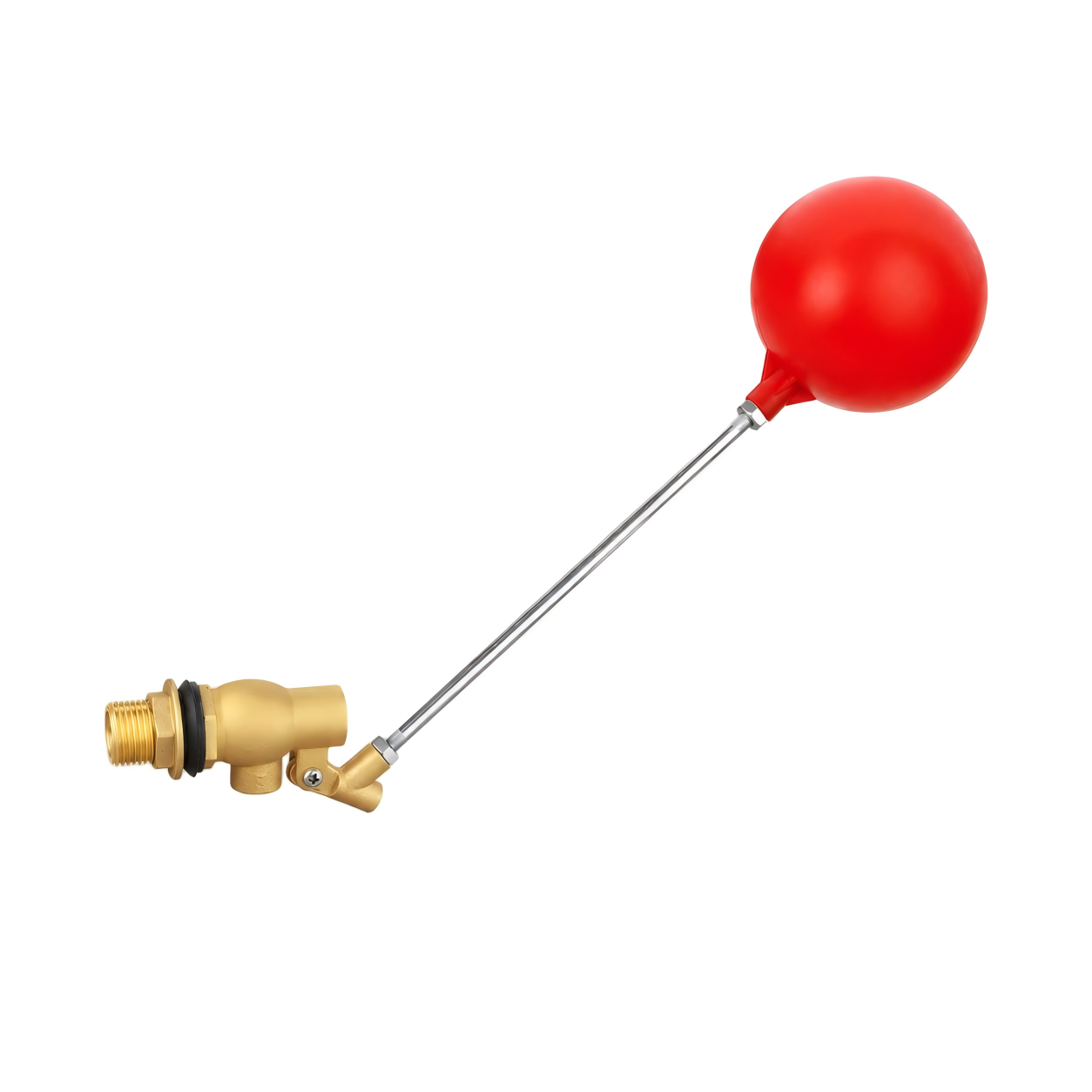

This brass float valve with red plastic float ball is designed for automatic water level control in water tanks and storage systems.
As the water level rises or falls, the float ball moves the operating arm and valve mechanism to control the incoming water supply automatically.
The current factory specification covers sizes from 1/2″ to 2″, with a working pressure range of 0.04 MPa to 0.6 MPa and a working temperature range from 0°C to 60°C.
1. Key Features
Brass Valve Body
Red Plastic Float Ball
Automatic Water Control
Mechanical Operation
0.04–0.6 MPa
1/2″–2″ Sizes
0°C–60°C
OEM Available
2. Technical Specifications
| Product Type | Brass Float Valve |
|---|---|
| Body Material | Brass |
| Float Ball | Red Plastic Float Ball |
| Available Sizes | 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ |
| Working Pressure | 0.04–0.6 MPa |
| Working Medium | Water |
| Working Temperature | 0°C to 60°C |
| Operation | Automatic Mechanical Water Level Control |
| Thread Standard | To Be Confirmed |
| Brass Grade | To Be Confirmed According to Product Specification |
| Float Ball Material Grade | To Be Confirmed |
| Internal Seal Material | To Be Confirmed |
| OEM / Customization | Available According to Project Requirements |
The current factory information confirms the brass body, plastic float ball, size range, working pressure, medium and temperature. Thread standard, brass alloy, plastic material grade, rod dimensions and internal sealing materials should be confirmed when required for a specific project.
3. How Does a Brass Float Valve Work?
The float valve uses the water level inside a tank to control the inlet mechanically.
As the water level falls, the plastic float ball moves downward with the water surface.
The movement of the float arm operates the valve mechanism and allows water to enter the tank.
As the tank fills, the float ball rises with the water level.
When the float reaches the shut-off position, the mechanism closes the water inlet.
4. Plastic Float Ball
This model uses a red plastic float ball to provide the buoyancy required to operate the water-level control mechanism.
As the water level changes, the float ball rises and falls and transfers this movement through the operating arm to the valve.
The current technical information does not specify the plastic material grade, float diameter or standard rod length.
5. Working Pressure Range: 0.04–0.6 MPa
The current factory specification defines the working pressure range as:
0.04 MPa ≤ PW ≤ 0.6 MPa
This should be treated as an operating pressure range rather than simply describing the valve as a 0.6 MPa pressure-rated product.
Actual inlet pressure should remain within the specified operating range. If system pressure falls outside this range, product suitability should be evaluated before ordering.
6. Available Sizes
The current factory information confirms the following sizes:
| Nominal Size | Working Medium | Working Pressure |
|---|---|---|
| 1/2″ | Water | 0.04–0.6 MPa |
| 3/4″ | Water | 0.04–0.6 MPa |
| 1″ | Water | 0.04–0.6 MPa |
| 1-1/4″ | Water | 0.04–0.6 MPa |
| 1-1/2″ | Water | 0.04–0.6 MPa |
| 2″ | Water | 0.04–0.6 MPa |
7. Working Temperature
The specified working temperature range is:
0°C to 60°C
Applications outside this temperature range should be evaluated separately before product selection.
8. Typical Applications
Brass float valves are used where the incoming water supply needs to be controlled automatically according to the water level inside a tank or reservoir.
Water Tanks
Storage Tanks
Water Reservoirs
Water Supply Systems
9. Plastic Ball vs Stainless Steel Ball Float Valve
SUNRICH FLOW also supplies a separate brass adjustable float valve model using a stainless steel float ball.
These should be treated as different product configurations rather than assuming that only the float ball is interchangeable between every model.
Plastic Float Ball
This product uses a red plastic float ball and should be selected according to its confirmed pressure, temperature and tank requirements.
Stainless Steel Float Ball
A separate model is available with a stainless steel float ball for projects requiring that product configuration.
10. What Should Buyers Confirm Before Ordering?
A float valve should not be selected only by nominal inlet size.
Before requesting a quotation, confirm:
- Required valve size
- Thread or connection standard
- Actual inlet pressure
- Working temperature
- Tank dimensions
- Required shut-off water level
- Rod dimensions if important
- Float-ball dimensions if important
- Material requirements
- Order quantity
- Logo and packaging requirements
11. Replacement and OEM Float Valve Projects
For replacement projects, product dimensions are often as important as the nominal valve size.
Useful information includes:
- Existing valve photos
- Connection size
- Thread standard
- Rod length
- Float-ball diameter
- Tank installation dimensions
- Working pressure
If you do not have a technical drawing, read:
How to Customize Brass Valves Without Technical Drawings
.
12. Integrated Manufacturing & Quality Control
SUNRICH FLOW works with specialized manufacturing partners in Yuhuan, Zhejiang, China, coordinating product specifications, production, quality control, OEM requirements, packaging and shipment for international buyers.
For float valve projects, the required size, working pressure, connection specification, float configuration and packaging requirements can be confirmed before production.
Specification Control
Production Coordination
Quality Inspection
OEM Coordination
Looking for a Brass Float Valve with Plastic Ball?
Send us the required size, connection standard, inlet pressure, tank dimensions, quantity and OEM requirements.
For replacement products, photos or a physical sample can also be provided for technical evaluation.
13. Frequently Asked Questions
What is a brass float valve with plastic ball used for?
What sizes are available?
What is the working pressure range?
What is the working temperature range?
What is the float ball made from?
What thread standard is used?
Does the valve require electricity?
Can this valve be used for liquids other than water?
Can the float valve be customized?
