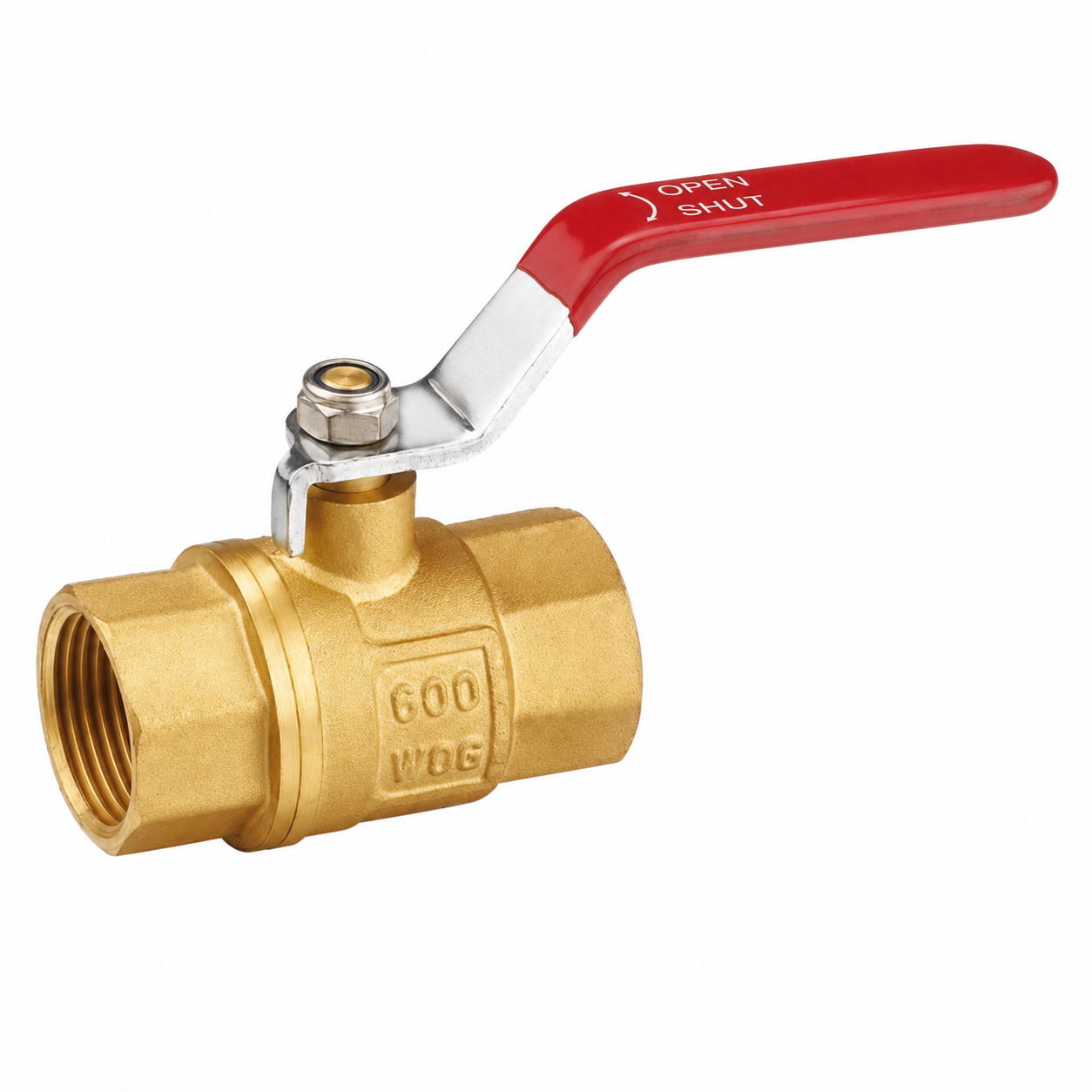

This 600 PSI full port brass ball valve features a 2-piece brass body, Female × Female threaded connections and a red lever handle for manual shut-off control.
The full-port design provides a straight flow passage through the valve when fully open, while the threaded body configuration allows installation in a wide range of piping systems.
The current product specification covers sizes from 1/4″ to 2″, with a pressure rating of 600 PSI / 41.3 bar WOG non-shock and a working temperature range from -20°C to 120°C.
BSP, BSPT and NPT thread options are available according to order requirements.
1. Key Features
600 PSI WOG
Full Port Design
2-Piece Brass Body
Female × Female
1/4″–2″ Sizes
BSP / BSPT / NPT
Red Lever Handle
OEM Available
2. Technical Specifications
| Product Type | Full Port Brass Ball Valve |
|---|---|
| Body Material | Brass |
| Body Construction | 2-Piece |
| Port Type | Full Port |
| Connection | Female × Female Threaded Ends |
| Thread Options | BSP / BSPT / NPT |
| Available Sizes | 1/4″–2″ |
| Pressure Rating | 600 PSI / 41.3 bar WOG, Non-Shock |
| Working Temperature | -20°C to 120°C / -4°F to 248°F |
| Handle | Red Lever Handle |
| Working Medium | To Be Confirmed According to Application |
| OEM / Customization | Available According to Project Requirements |
The 600 PSI rating is specified as WOG non-shock.
Suitability for a particular medium, regulated gas application or special service condition should be confirmed according to the required product specification before ordering.
3. What Does 600 PSI WOG Mean?
The current product specification lists this valve at 600 PSI / 41.3 bar WOG non-shock.
Pressure rating is an important selection parameter, but it should not be evaluated independently from working temperature, fluid medium, sealing materials and the applicable product requirements.
For project orders, provide the required working pressure and medium so that the appropriate valve configuration can be confirmed before production.
4. Full Port Ball Valve Design
A full port ball valve uses an internal flow passage designed to provide a relatively unrestricted path through the valve when it is fully open.
Compared with a reduced-port design, a full-port configuration is generally selected where maintaining a larger internal flow passage is important to the piping system.
It should not be used by itself as an indication of material quality, valve strength or pressure rating.
5. Female × Female Threaded Ends
This model uses female threaded connections on both ends.
The internal threaded configuration allows the valve to connect directly to compatible male-threaded pipes, fittings and other components.
When purchasing threaded ball valves, both the nominal size and the thread standard should be confirmed because different thread systems are not automatically interchangeable.
6. BSP, BSPT and NPT Thread Options
BSP, BSPT and NPT thread options are available according to order requirements.
BSP / BSPP
Parallel pipe-thread configurations can be supplied when required by the customer’s piping system and destination market.
BSPT
BSP tapered thread configurations can be supplied according to the confirmed product specification.
NPT
NPT threaded versions are available for projects requiring the corresponding tapered pipe-thread standard.
Do not specify only “1/2 inch” or “1 inch” when requesting a quotation.
Always confirm whether BSP, BSPT or NPT thread is required.
7. Available Size Range
The current product specification covers nominal valve sizes from 1/4″ to 2″.
| Size Range | Connection | Thread Options |
|---|---|---|
| 1/4″–2″ | Female × Female | BSP / BSPT / NPT |
Confirm individual size availability and thread combination when requesting a quotation.
8. 2-Piece Brass Body Construction
This ball valve uses a 2-piece body construction.
The valve body configuration provides the housing required for the internal ball, stem and sealing components while maintaining threaded pipeline connections on both sides.
Body construction should be evaluated together with valve dimensions, internal bore, material specification, pressure requirements and final testing rather than by appearance alone.
9. Working Temperature
The specified working temperature range for this model is:
-20°C to 120°C / -4°F to 248°F
Actual suitability at a specific temperature also depends on the working medium and internal component specification.
10. How Does a Brass Ball Valve Work?
A ball valve controls flow by rotating an internal ball with a bore through its center.
When the ball bore is aligned with the pipeline, fluid can pass through the valve.
The lever handle rotates the stem and internal ball.
When the ball is rotated approximately 90 degrees, the solid side of the ball blocks the flow passage.
This quarter-turn operation allows the valve to be used for straightforward manual isolation and shut-off control.
11. What Should Buyers Check Before Ordering?
Two brass ball valves may look similar but have different technical specifications.
Before comparing quotations, confirm:
- Pressure rating
- Valve size
- BSP, BSPT or NPT thread
- Full-port requirement
- Working medium
- Working temperature
- Required brass specification
- Internal component requirements
- Logo and packaging
- Order quantity
For a more detailed comparison, see:
Why Do Different Suppliers Quote Different Prices for the Same Brass Valve?
12. CNC Machining and Product Consistency
CNC machining is used to create critical valve dimensions such as threaded connections, internal cavities, stem positions and sealing interfaces.
Its main purpose is not to make poor brass stronger, but to produce the geometry required by the approved valve specification.
Learn more:
Why Is CNC Machining Important in Brass Valve Production?
13. OEM and Custom Ball Valve Options
SUNRICH FLOW supports OEM and customized brass ball valve projects for importers, distributors and private-label brands.
Depending on project requirements, customization can be evaluated for:
- BSP, BSPT or NPT threads
- Valve body marking
- Logo
- Handle marking and color
- Product specifications
- Private-label packaging
- Technical drawing-based development
- Physical sample-based development
If you do not have a technical drawing, an existing valve sample can also be used for technical evaluation.
Learn more:
How to Customize Brass Valves Without Technical Drawings
.
Looking for a 600 PSI Brass Ball Valve?
Send us the required valve size, BSP/BSPT/NPT thread, quantity, working pressure, working medium and packaging requirements.
For OEM projects, drawings or physical samples can also be provided for evaluation.
14. Frequently Asked Questions
What is the pressure rating of this brass ball valve?
Is this a full-port ball valve?
What sizes are available?
Confirm individual size availability before placing an order.
What thread options are available?
What is the working temperature range?
What media can this valve be used for?
Please provide the intended fluid, working pressure and temperature when requesting a quotation so that suitability can be evaluated.
What does Female × Female mean?
Can the ball valve be customized for OEM orders?
Need a 600 PSI Full Port Brass Ball Valve?
Tell us your required size, thread standard, quantity, working conditions and OEM requirements.
We can evaluate the specification before preparing a quotation.
