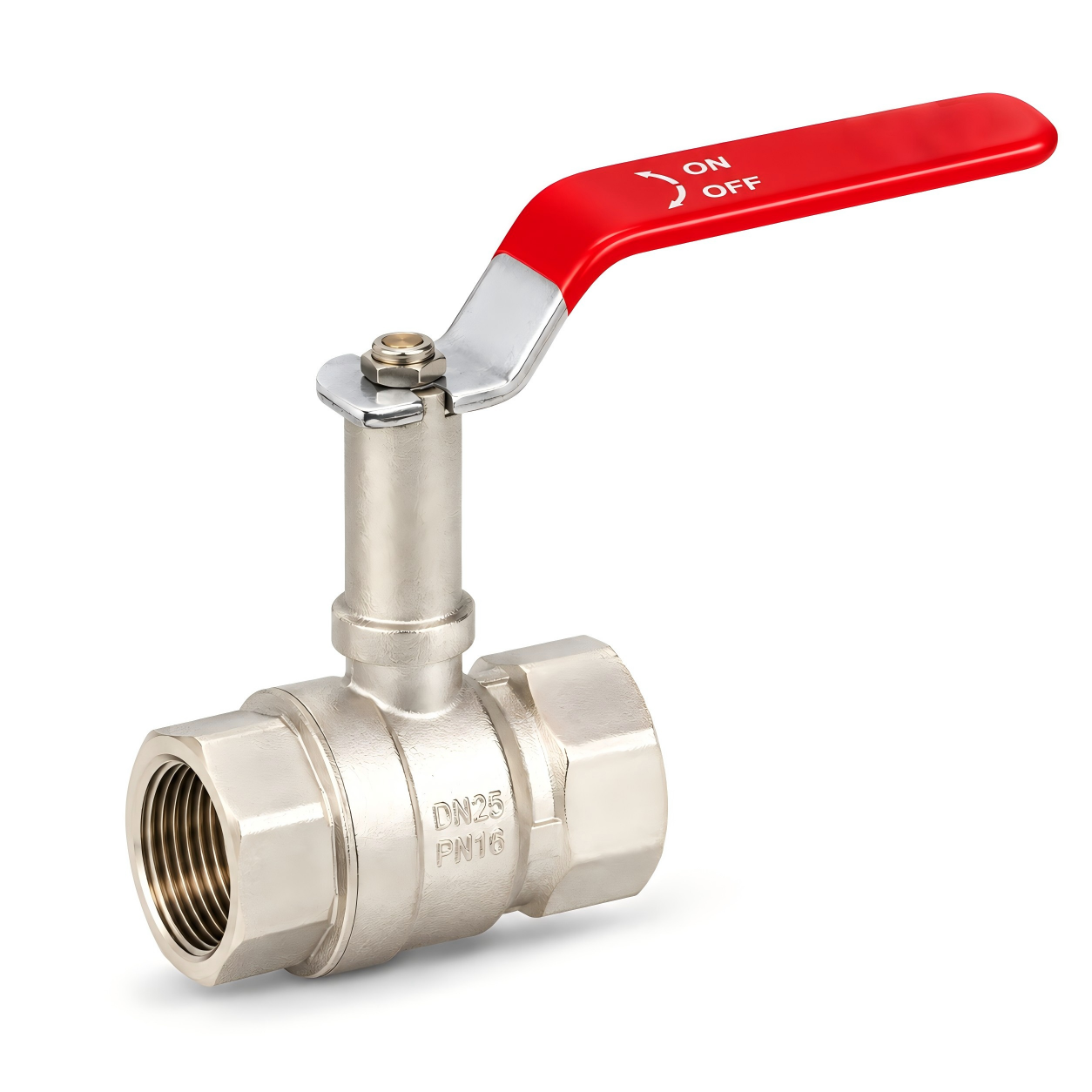

This full bore brass ball valve features Female × Female threaded connections, a red lever handle and a full-bore flow passage for manual shut-off applications.
The confirmed size range is 1/2″–2″, and the same product series can be supplied in PN16 or PN25 configurations according to the required specification.
The thread standard can be customized according to buyer requirements. Exact brass grade, sealing materials, testing requirements and final working-medium suitability should be confirmed before quotation.
Key Features
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Full Bore Ball Valve |
| Body Material | Brass – Exact Grade To Be Confirmed |
| Bore Type | Full Bore |
| Connection | Female × Female Threaded |
| Thread Standard | BSPP, BSPT, NPT or Other Requirements – Customizable |
| Available Sizes | 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ |
| Pressure Options | PN16 / PN25 – According to Product Specification |
| Working Temperature | -20°C to 120°C |
| Operation | Manual Lever Handle |
| Handle | Red Lever Handle |
| Working Medium | To Be Confirmed According to Application |
| Internal Component Materials | To Be Confirmed |
| Testing Standard | To Be Confirmed |
| OEM / Customization | Supported – Subject to Final Specification |
Dimensions
The following dimensions are based on the supplied product data sheet. Dimensions are shown in millimeters.
| Size | L | L1 | L2 | L3 | H | DN |
|---|---|---|---|---|---|---|
| 1/2″ | 51.00 | 11.50 | 11.50 | 89.00 | 53.00 | 14.50 |
| 3/4″ | 57.00 | 12.00 | 12.00 | 99.50 | 55.00 | 19.00 |
| 1″ | 66.00 | 13.50 | 13.50 | 114.00 | 65.30 | 24.00 |
| 1-1/4″ | 77.00 | 16.00 | 16.00 | 114.00 | 69.50 | 30.00 |
| 1-1/2″ | 86.50 | 17.00 | 17.00 | 142.00 | 83.00 | 37.00 |
| 2″ | 100.00 | 18.00 | 18.00 | 142.00 | 91.00 | 47.00 |
Full Bore Ball Valve Design
A full-bore ball valve uses a relatively large internal flow passage compared with reduced-bore designs of a similar nominal connection size.
This can help reduce flow restriction when the valve is fully open, although actual flow performance depends on the complete valve geometry and system conditions.
Buyer Tip: full bore describes the internal flow-path design. It does not by itself determine pressure rating, material quality or suitability for a particular medium.
PN16 and PN25 Options
This valve series can be supplied in PN16 or PN25 configurations according to the required product specification.
Buyers should specify the required pressure class when requesting a quotation because PN16 and PN25 versions should not automatically be treated as identical products.
For additional guidance, see our PN16 vs PN25 Brass Ball Valves guide.
Technical Buyer Notes
Confirm the Required Thread Standard
The valve uses Female × Female threaded connections, and the thread standard can be customized according to buyer requirements.
Specify BSPP, BSPT, NPT or another required pipe-thread standard clearly in the RFQ.
For more information, see our BSP vs NPT thread guide.
Confirm the Required Pressure Class
The supplied product information indicates that this series may be configured for PN16 or PN25.
Pressure class should therefore be confirmed together with working medium and operating temperature rather than selected from the valve size alone.
Confirm the Brass Grade
The valve body is brass, but the exact brass grade is not currently confirmed.
If a particular material specification is required for the target market or application, include the required brass designation in the purchasing specification.
Confirm Internal Components
Ball, stem, seat, O-ring and other internal component materials are not confirmed by the currently available information.
If sealing material, stem material or other internal specifications are important to the application, these requirements should be confirmed before production.
Application Considerations
This full bore brass ball valve is designed for manual on/off flow control in threaded piping systems.
Final suitability should be evaluated according to working medium, temperature, required pressure class, thread standard and any application-specific requirements.
What Should Buyers Specify When Requesting a Quote?
For this full bore brass ball valve, provide as much of the following information as possible:
- Required size
- Quantity for each size
- PN16 or PN25 requirement
- Required thread standard
- Working medium
- Working temperature
- Required brass grade, if applicable
- Internal component or sealing-material requirements, if applicable
- Testing requirements
- Logo or valve-body marking requirements
- Handle requirements
- Packaging requirements
- Reference drawing, product photo or sample if available
Example RFQ
Product: Full Bore Brass Ball Valve
Size: Buyer to specify from 1/2″–2″
Connection: Female × Female
Thread Standard: Buyer to specify
Pressure Class: PN16 or PN25
Working Temperature: -20°C to 120°C
Working Medium: Buyer to specify
Quantity: Buyer to specify
OEM & Purchasing Support
SUNRICH FLOW works with specialized manufacturing partners in Yuhuan, Zhejiang, China, coordinating product specifications, production, quality control, OEM requirements, packaging and shipment for international buyers.
Thread standard, pressure configuration, product marking, handle, packaging and other purchasing requirements can be evaluated according to the final specification.
OEM Note: OEM feasibility depends on the required product specification and should be evaluated before production.
Quality & Order Confirmation
Before bulk production, the confirmed purchasing specification should be used as the basis for product inspection and order confirmation.
- Correct nominal size
- Full bore requirement
- PN16 or PN25 configuration
- Female × Female threaded connections
- Required thread dimensions and standard
- Critical overall dimensions
- Lever opening and closing operation
- Required brass specification, if applicable
- Internal component requirements
- Required functional testing
- Leakage or pressure-test requirements
- Product marking and packaging requirements
Quality Note: no specific testing standard, test pressure, test duration or leakage acceptance criteria are currently confirmed. These requirements should be agreed before production when required by the order specification.
Frequently Asked Questions
What sizes are available?
The confirmed size range is 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″ and 2″.
Is this a full bore ball valve?
Yes. The supplied product data identifies this series as a full bore ball valve.
Is this valve PN16 or PN25?
The same series can be supplied in PN16 or PN25 configurations according to the required specification.
Is the thread BSPP, BSPT or NPT?
The thread standard can be customized according to buyer requirements. Please specify the required BSPP, BSPT, NPT or other thread standard in the RFQ.
What is the brass material?
The valve body is brass, but the exact brass grade is not currently confirmed. A required material grade should be specified before quotation if it is important to the project.
What is the working-temperature range?
The supplied data sheet specifies a working-temperature range of -20°C to 120°C.
Does this product support OEM customization?
Yes. Thread standard, pressure configuration, marking, handle, packaging and other OEM requirements can be evaluated according to the final specification.
What information should I provide for a quotation?
Please provide size, quantity, PN16 or PN25 requirement, thread standard, working medium and any applicable material, testing, OEM or packaging requirements.
Need a Full Bore Brass Ball Valve?
Share your required size, PN16 or PN25 requirement, thread standard, quantity and working conditions. We can evaluate the required specification before quotation.
