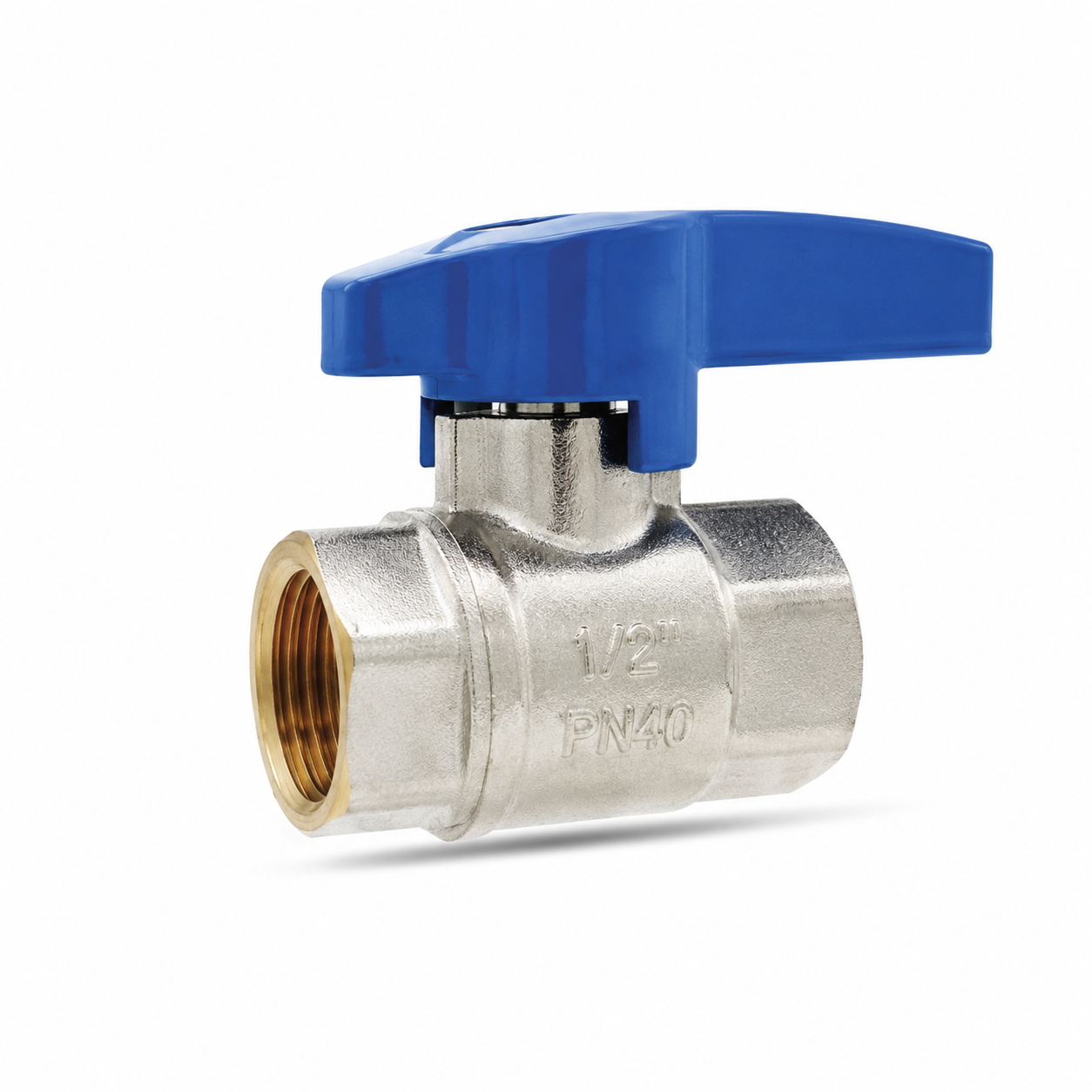

Nickel-Plated Brass Ball Valve with F/F, M/F & M/M Threaded Ends
Nickel-plated brass ball valve with blue handle and three threaded connection options: Female × Female, Male × Female and Male × Male. Available in 1/2″ and 3/4″ sizes, with BSP, BSPT or NPT thread options for water supply, plumbing, HVAC and general pipeline shut-off applications. PN16 or PN25 configurations can be evaluated according to the final specification.
This nickel-plated brass ball valve with blue handle
is available with three threaded connection configurations:
Female × Female, Male × Female and Male × Male.
The series is designed for manual quarter-turn shut-off in water supply,
plumbing, HVAC and general compatible pipeline applications.
Available sizes are 1/2″ and 3/4″. BSP, BSPT or NPT
thread configurations can be evaluated according to the destination
market and purchasing specification.
For importers, distributors and OEM buyers, the required connection type,
thread standard, pressure class and quantity should be confirmed before
quotation.
Key Product Features
One ball valve series with multiple threaded connection options
for different installation requirements.
Nickel-Plated Brass Body
Brass valve body with a uniform nickel-plated external finish.
Three Connection Options
Female × Female, Male × Female and Male × Male configurations
are available within the series.
1/2″ & 3/4″ Sizes
The currently listed size range includes 1/2″ and 3/4″.
BSP / BSPT / NPT
Different pipe-thread standards can be evaluated according
to the purchasing requirement.
Quarter-Turn Operation
Blue lever handle provides fast manual opening and closing
through approximately 90° of rotation.
OEM Options
Product marking, handle requirements and private-label packaging
can be evaluated for applicable OEM projects.
Technical Specifications
Current product information for this nickel-plated brass ball valve series.
| Product Type | Nickel-Plated Brass Ball Valve |
|---|---|
| Body Material | Brass |
| Surface Finish | Nickel plated |
| Connection Options | Female × Female / Male × Female / Male × Male |
| Available Models | PX1116 / PX1316 / PX1216 |
| Available Sizes | 1/2″, 3/4″ |
| Thread Options | BSP, BSPT or NPT |
| Pressure Options | PN16 / PN25, subject to final product confirmation |
| Operation | Manual quarter-turn |
| Handle | Blue lever handle |
| Applications | Water supply, plumbing, HVAC and general pipeline shut-off |
| OEM / Private Label | Available for evaluation according to project requirements |
Buyer Note:
PN16 and PN25 should be treated as configuration options rather than
a single fixed rating for every variant in this series. Confirm the
required pressure class together with the model, size and thread
specification before ordering.
Available Models and Connection Types
The three model codes mainly distinguish the threaded connection arrangement.
| Model | Connection | Typical Requirement |
|---|---|---|
| PX1116 | Female × Female | For installation between compatible male-threaded components |
| PX1316 | Male × Female | For installations requiring one male and one female valve connection |
| PX1216 | Male × Male | For installation between compatible female-threaded components |
When requesting a quotation, specify the model or the required
connection arrangement. A request for only a “1/2″ brass ball valve”
is not enough to identify the correct configuration.
Female × Female, Male × Female or Male × Male?
Female × Female
Both valve ends use internal threads and connect to compatible
male-threaded piping components.
Male × Female
One end uses an external thread and the other an internal thread,
which can simplify certain piping layouts.
Male × Male
Both valve ends use external threads and connect to compatible
female-threaded components.
The connection arrangement should be selected based on the existing
piping components and installation layout rather than valve size alone.
BSP, BSPT or NPT Thread Options
This series can be evaluated with BSP, BSPT or NPT
threaded connections according to the purchasing requirement.
Buyers should specify the exact thread standard together with
the nominal size. Threads with the same nominal inch size should
not be assumed to be interchangeable.
If an existing valve is being replaced, providing a drawing,
reference sample or clear thread specification can reduce the
risk of connection mismatch.
For more information, see
BSP vs NPT Threads: What Brass Valve Buyers Should Know
.
PN16 or PN25?
The current product information lists
PN16 and PN25 as available pressure options,
subject to final confirmation for the selected configuration.
Buyers should not assume that every size, model and thread variant
automatically has the same pressure rating.
Specify the required pressure class in the RFQ and confirm it
against the final product configuration before production.
PN16
Can be evaluated where PN16 matches the required operating
and purchasing specification.
PN25
Can be evaluated where PN25 is required and confirmed for
the selected valve configuration.
Nickel-Plated Finish and Blue Lever Handle
The valve is supplied with a nickel-plated external finish,
giving the body a uniform silver-colored appearance.
The standard product shown uses a blue lever handle for manual
quarter-turn operation.
For applicable OEM projects, handle color, product marking
and packaging requirements can be evaluated according to the
confirmed specification and order quantity.
Typical Applications
Final suitability should always be checked against the actual
operating conditions and selected valve configuration.
Water Supply
Manual shut-off in compatible water distribution lines.
Plumbing Systems
Threaded isolation valve for compatible residential,
commercial and general plumbing installations.
HVAC Water Lines
Can be evaluated for compatible water-based HVAC piping applications.
General Pipeline Shut-Off
Quarter-turn isolation in compatible threaded piping systems.
What Should Buyers Confirm Before Ordering?
Confirming the complete configuration makes quotations easier
to compare on the same technical basis.
- Required model: PX1116, PX1316 or PX1216
- Connection type: F/F, M/F or M/M
- Required size: 1/2″ or 3/4″
- Required thread standard: BSP, BSPT or NPT
- Required pressure class: PN16 or PN25
- Working medium
- Working temperature
- Required material specifications, if applicable
- Quantity for each configuration
- Logo and product marking requirements
- Handle color or identification requirements
- Private-label packaging requirements
- Destination market or country
If you need to reproduce or replace an existing valve, a drawing,
datasheet, detailed photos or physical sample can also be used
as a reference for evaluation.
Learn more:
How to Customize Brass Valves Without Technical Drawings
.
OEM and Private-Label Supply
SUNRICH FLOW works with manufacturing partners to coordinate
product specifications, production requirements, quality follow-up,
marking, packaging and shipment for international buyers.
OEM feasibility depends on the selected valve configuration,
order quantity and final purchasing requirements.
Connection Configuration
F/F, M/F and M/M options can be selected according to the project.
Thread Requirement
BSP, BSPT or NPT requirements can be evaluated for the required model.
Product Marking
Logo and identification requirements can be reviewed for
applicable OEM orders.
Private-Label Packaging
Labels, inner boxes, cartons and other packaging requirements
can be evaluated according to the order.
Learn more about our
OEM & Custom Brass Valve Solutions
.
Quality and Order Confirmation
Inspection requirements should be based on the confirmed product
specification and buyer requirements rather than a generic checklist.
- Correct valve model and connection arrangement
- Correct nominal size
- Required thread standard and dimensions
- Confirmed pressure-class requirement
- Nickel-plated surface appearance
- Handle opening and closing operation
- Critical product dimensions where specified
- Pressure and leakage requirements where agreed
- Product marking and labeling
- Packaging and quantity
Testing conditions, test pressure, test duration and acceptance
criteria should be confirmed when they are part of the purchasing
specification.
See also our
Brass Valve Quality Control
page.
Frequently Asked Questions
What connection types are available?
This series includes Female × Female, Male × Female and
Male × Male threaded connection configurations.
What is the difference between PX1116, PX1316 and PX1216?
PX1116 uses Female × Female connections, PX1316 uses
Male × Female connections, and PX1216 uses Male × Male connections.
What sizes are available?
The currently listed sizes are 1/2″ and 3/4″.
Can this valve be supplied with BSP or NPT threads?
BSP, BSPT and NPT options can be evaluated according to
the selected model and purchasing requirement.
Is this ball valve PN16 or PN25?
The current product information lists PN16 and PN25 as available
options subject to final confirmation. The required pressure class
should be specified for the selected model before ordering.
What is this ball valve used for?
The current product information identifies water supply, plumbing,
HVAC and general pipeline shut-off applications.
Can the handle color be customized?
Handle color and identification requirements can be evaluated
for applicable OEM orders.
Can I add my own logo and packaging?
Product marking, labels, inner boxes and private-label packaging
can be evaluated according to the final specification and order requirements.
What information should I send for a quotation?
Provide the required model or connection type, size, thread standard,
pressure requirement, quantity, application and any OEM or packaging
requirements.
Looking for Nickel-Plated Brass Ball Valves?
Send us your required F/F, M/F or M/M connection, valve size,
thread standard, pressure requirement, quantity and OEM needs.
SUNRICH FLOW can review the specification and prepare a quotation
for your project.
